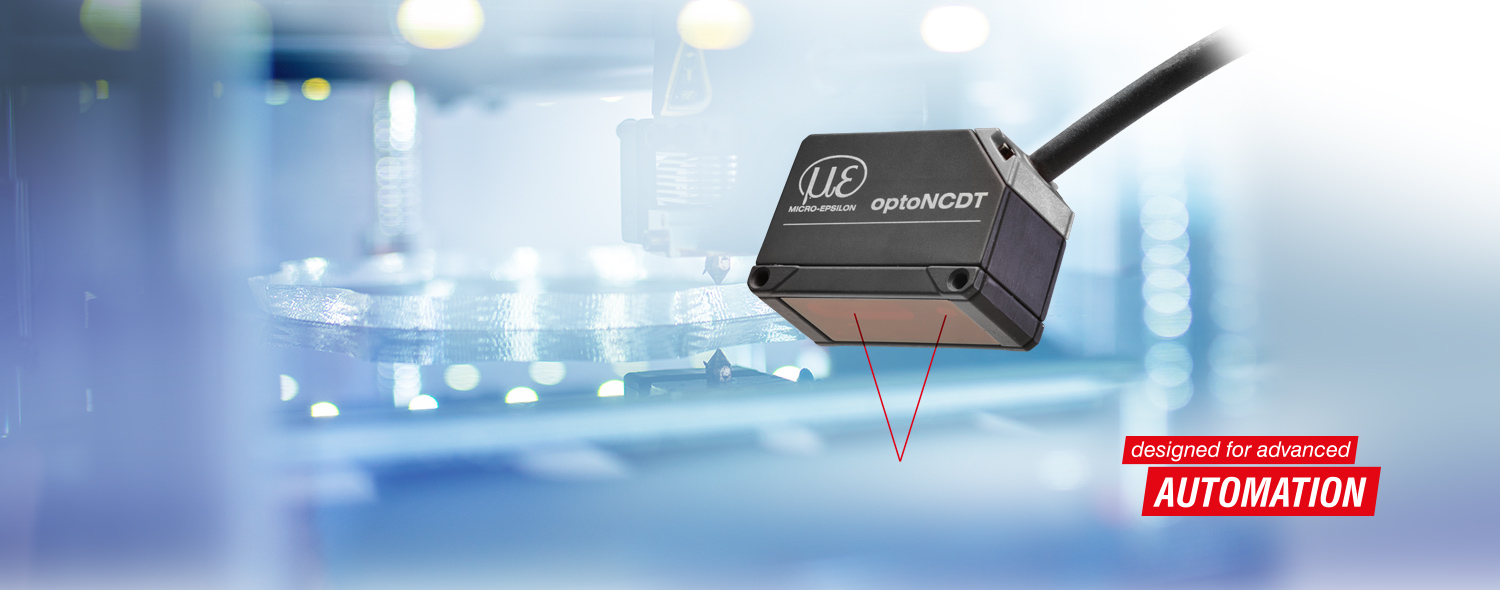

optoNCDT 1320

Entry-level model for laser measurements: compact, precise & universal

Precise laser displacement measurement

The optoNCDT 1320 is a new class of laser triangulation sensors for displacement, distance and position measurement.

Although Micro-Epsilon classes the optoNCDT 1320 as an entry-level laser displacement sensor in our product portfolio, the technical features exceed many mid-range performance sensors currently on the market.

Despite its extremely compact size, the laser triangulation sensor offers excellent measurement performance. With an Integrated controller, selectable analogue or serial output and Active Surface Compensation (ASC), the sensor can solve many precision measurement tasks. The sensor also benefits from a competitive pricing structure, making it suitable for both single piece and higher volume OEM applications.

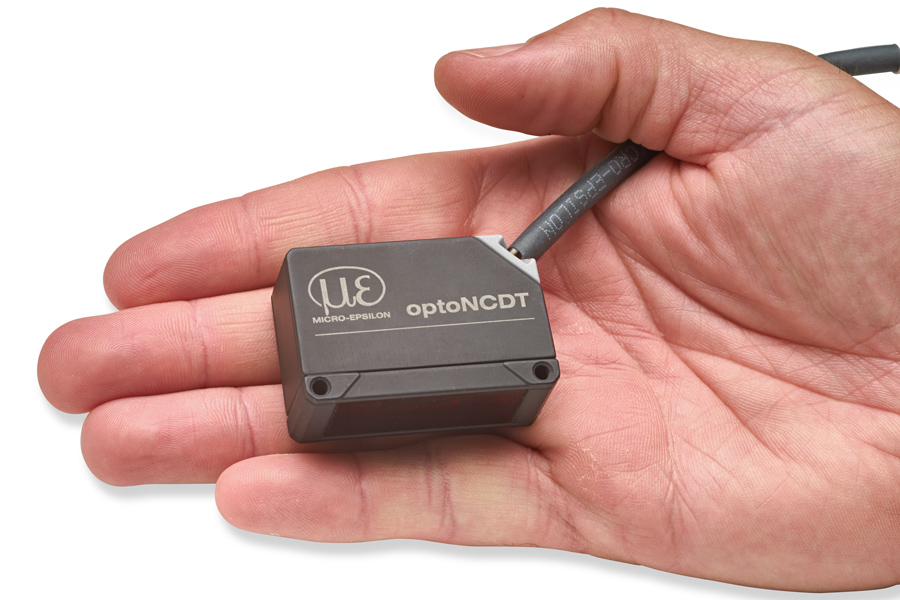

Due to its compact size and low mass, the optoNCDT 1320 is ideally suitable for applications with restricted space or where high accelerations occur e.g. mounted on robot arms or in pick-and-place machines.

The Active Surface Compensation (ASC) provides stable measurements regardless of target colour or brightness. Precision optics normally found in more expensive sensor series create sharp and small diameter spot geometries, enabling very small objects to be reliably measured.

logo

Characteristics

  1. Measuring ranges (mm) 10 | 25 | 50 | 100 | 200 | 500
  2. Linearity from 10µm
  3. Repeatability from 1µm
  4. Measuring rate 4kHz
  5. Compact size with integrated electronics
  6. 3m integrated sensor cable with open ends
  7. Scalable analogue output
  8. Trigger input
  9. Interfaces: RS422, PROFINET, EtherNet/IP, EtherCAT
[]
