thicknessCONTROL - High performance measuring systems for electrode film

thicknessCONTROL High performance measuring systems for electrode film

Scalable systems for the thickness measurement of electrode film

Micro-Epsilon offers a wide range of thickness measuring systems for different requirements and fields of application in coating lines. The thicknessCONTROL C-frames are designed for very harsh environments such as in dry coating. Their robust frame and the integrated temperature compensation feature ensure high measurement accuracy even in high ambient temperatures. In addition, the systems are available in different application-specific designs for various film widths with up to 8 measurement tracks.

logo

Characteristics

  1. High-precision thickness measuring system for coated anode and cathode film
  2. Sensor technology used: confocal chromatic sensors
  3. Ideal for thickness measurement and control in dry coating
  4. Robust design with integrated temperature compensation
  5. Thickness measuring range from 10 µm
  6. System accuracy from ±0.3 µm
  7. Comprehensive software package for data acquisition, signal processing and automation
  8. Configurable for 1 | 2 | 3 | 4 | 6 | 8 tracks
[]
Contact
MICRO-EPSILON UK & Ireland Ltd.
Contact form
Your request for: {product}
* Mandatory fields
We treat your data confidentially. Please read our data privacy statement.

Ideal for thickness measurements of up to 8 tracks

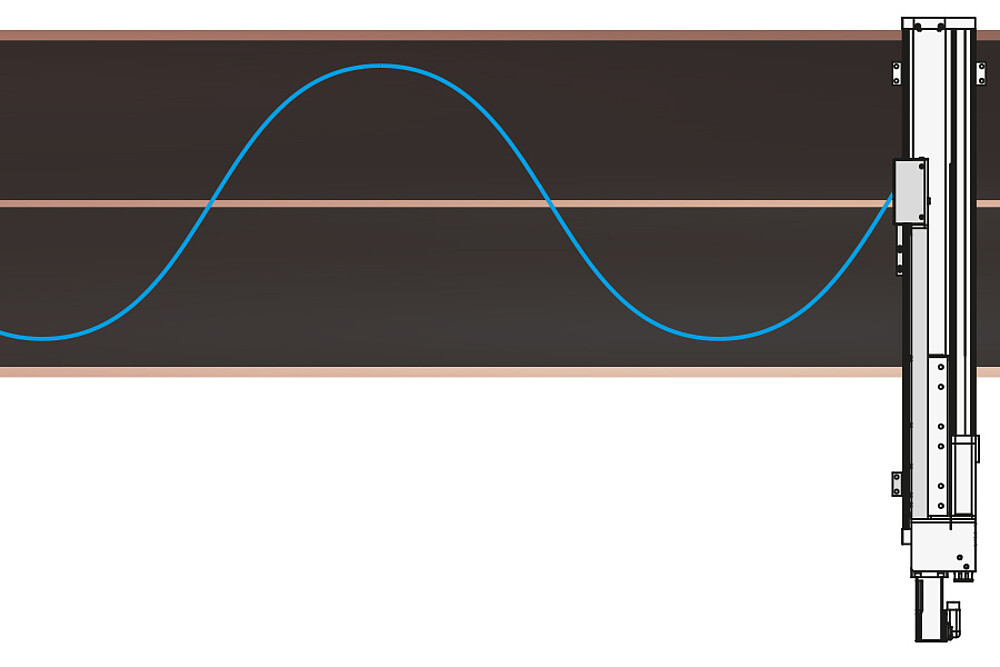

thicknessCONTROL can also be used for fixed track measurements, e.g., for centre-line measurements (centre thickness) or for thickness measurements on the edges. Alternatively, this sensor system can also be used for traversing thickness measurements of coated battery film. The systems can be equipped with several sensors in order to measure a maximum of 8 tracks synchronously.
