thicknessGAUGE

Sensor system for precise thickness measurements of strip and plate materials

Sensor system for precise thickness measurement of strip and plate materials

thicknessGAUGE sensor systems are used for precise thickness measurements of strip materials, plates and sheets up to 50 mm. Several models with different sensor types, measuring ranges and measuring widths enable inline thickness measurements of different materials and surfaces based on an unmatched price/performance ratio.

This fully assembled system comprises a stable frame on which two optical distance sensors are fixed, which detect the thickness of the measuring object according to the difference principle. The sensors are perfectly aligned to each other in terms of their mounting condition. Furthermore, thickness calibration at the factory enables high precision thickness measurements.

A linear axis moves the sensor system from the parking position to the measuring position. A measurement standard for fully automatic calibration is in the parking position.

logo

Characteristics

  1. Compact complete solution for precise inline thickness measurements
  2. For many types of surfaces and materials due to different sensor technologies
  3. Traversing sensors on linear axis
  4. Fully automatic calibration
  5. 24 V supply for the entire system
  6. Integrated software
  7. Ideal price/performance ratio
[]
Contact
MICRO-EPSILON UK & Ireland Ltd.
Contact form
Your request for: {product}
* Mandatory fields
We treat your data confidentially. Please read our data privacy statement.

Thickness measurement with high precision

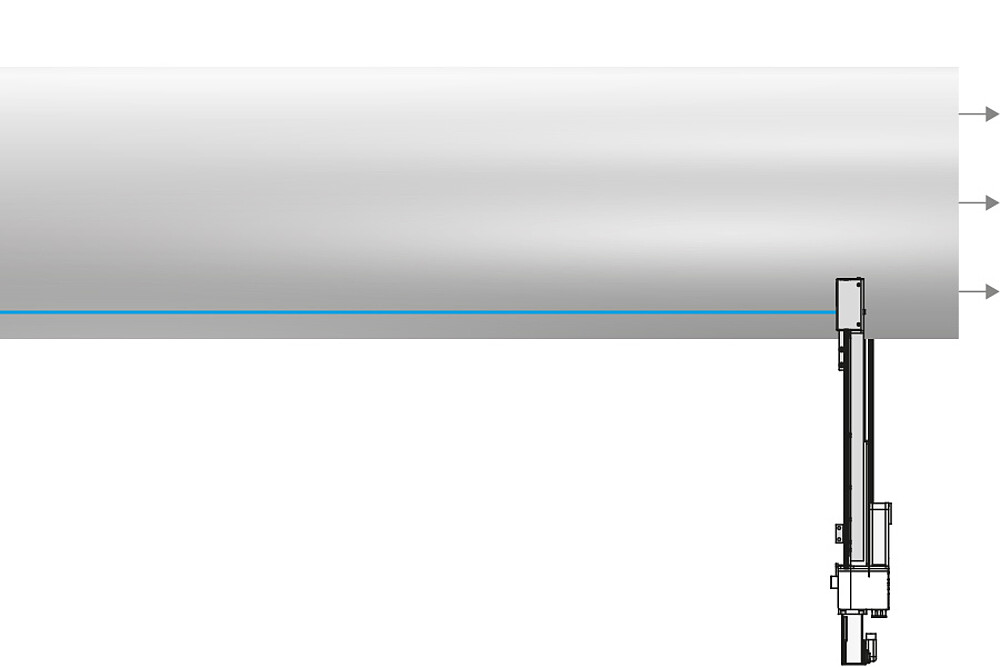

thicknessGAUGE sensor systems are used in industrial environments for precise thickness measurements of strip and plate materials. A linear unit with electromechanical drive enables thickness measurements in traversing mode. Alternatively, fixed track measurements are possible for centre-line measurements (centre thickness) or for thickness measurements on the edges.
