Multi Channel Colour sensors for LED colour and intensity
The colorCONTROL MFA is used for flexible colour inspections and intensity testing of LEDs, displays and colored objects. The flexible positioning of the sensors in relation to the objects, as well as their high repeatability, measuring rates and dynamics are particularly favorable. One colorCONTROL MFA monitors up to 28 test objects simultaneously.

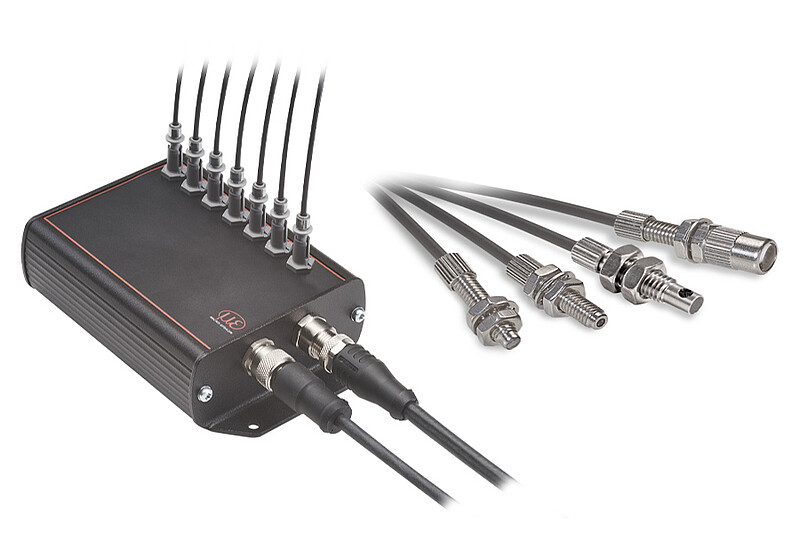

Characteristics
-
Multi-channel colour recognition system
-
7 measurement channels
-
Repeatability: xy < ± 0.000025
-
High measuring rate up to 100 Hz
-
High dynamic range of 1 ... 50,000 lux
-
Simultaneous monitoring of up to 7 test objects
-
Colour inspection in XYZ, xyY, Luv, uvl and RGB colour space
-
Output of the dominant wavelength (λdom) and colour temperature (CCT)
-
Exchangeable MFS receiver sensors
-
Outputs: USB / RS422 / RS232

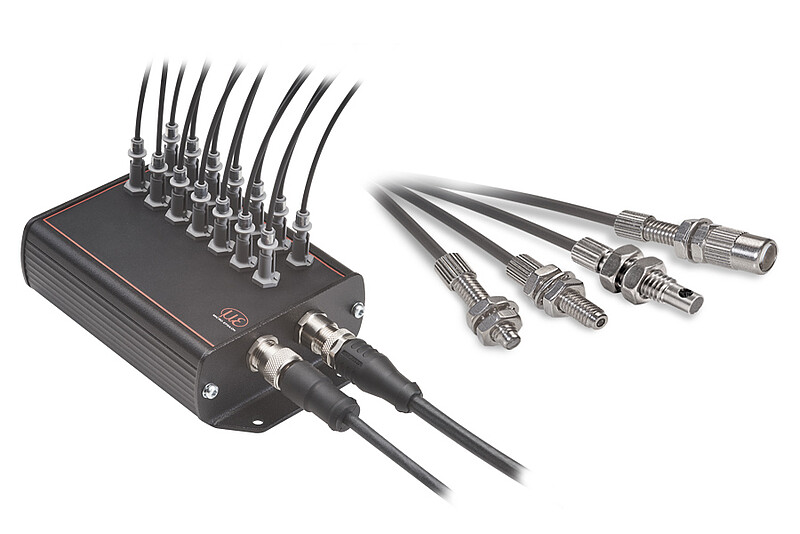

Characteristics
-
Multi-channel colour recognition system
-
14 measurement channels
-
Repeatability: xy < ± 0.000025
-
High measuring rate up to 80 Hz
-
High dynamic range of 1 ... 50,000 lux
-
Simultaneous monitoring of up to 14 test objects
-
Colour inspection in XYZ, xyY, Luv, uvl and RGB colour spaces
-
Output of the dominant wavelength (λdom) and colour temperature (CCT)
-
Exchangeable MFS receiver sensors
-
Outputs: USB / RS422 / RS232

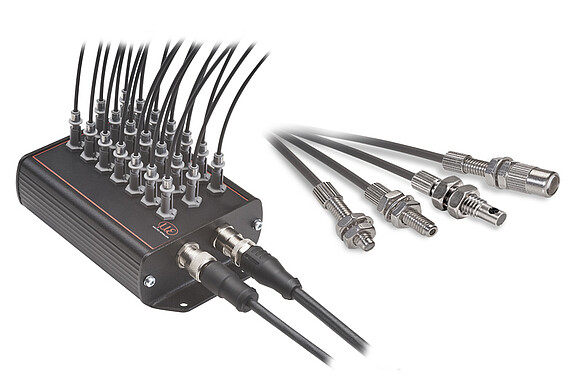

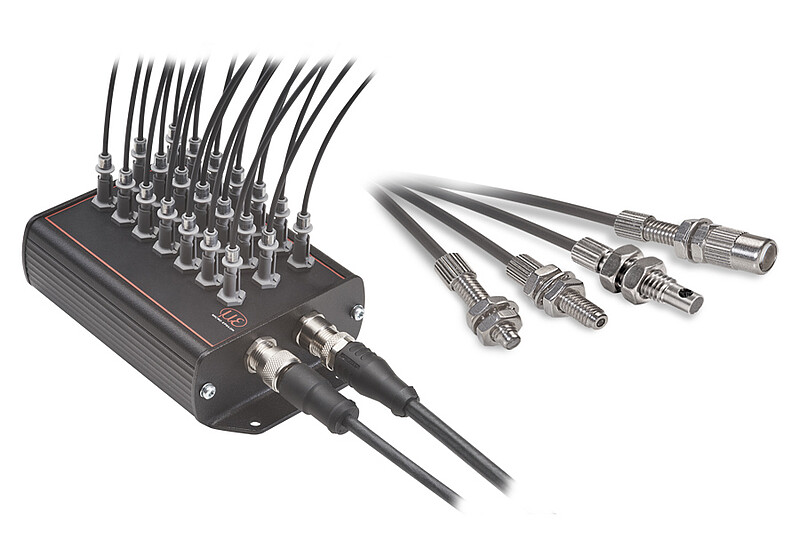

Characteristics
-
Multi-channel colour recognition system
-
21 measurement channels
-
Repeatability: xy < ± 0.000025
-
High measuring rate up to 60 Hz
-
High dynamic range of 1 ... 50,000 lux
-
Simultaneous monitoring of up to 21 test objects
-
Colour inspection in XYZ, xyY, Luv, uvl and RGB colour spaces
-
Output of the dominant wavelength (λdom) and colour temperature (CCT)
-
Exchangeable MFS receiver sensors
-
Outputs: USB / RS422 / RS232

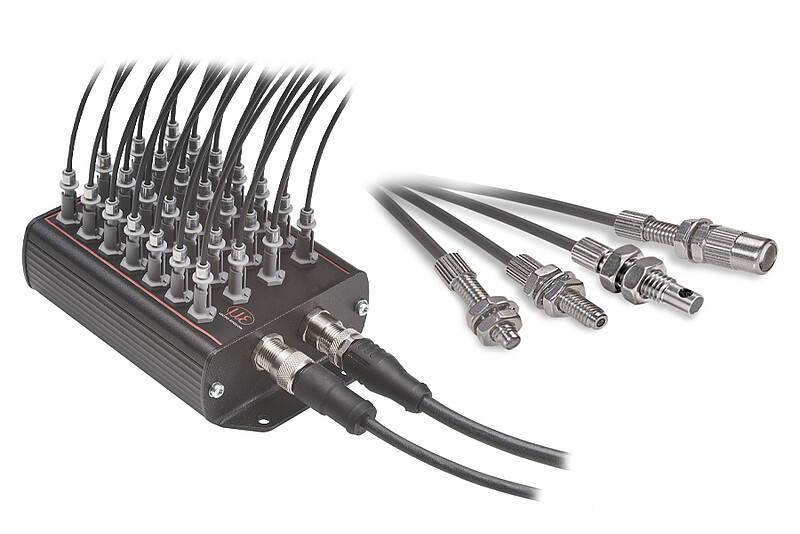

Characteristics
-
Multi-channel colour recognition system
-
28 measurement channels
-
Repeatability: xy < ± 0.000025
-
High measuring rate up to 50 Hz
-
High dynamic range of 1 ... 50,000 lux
-
Simultaneous monitoring of up to 28 test objects
-
Colour inspection in XYZ, xyY, Luv, uvl and RGB colour spaces
-
Output of the dominant wavelength (λdom) and colour temperature (CCT)
-
Exchangeable MFS receiver sensors
-
Outputs: USB / RS422 / RS232

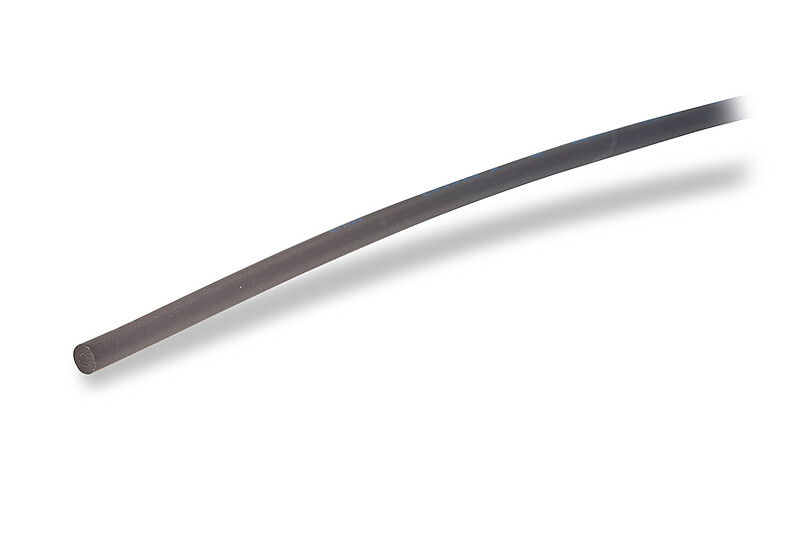

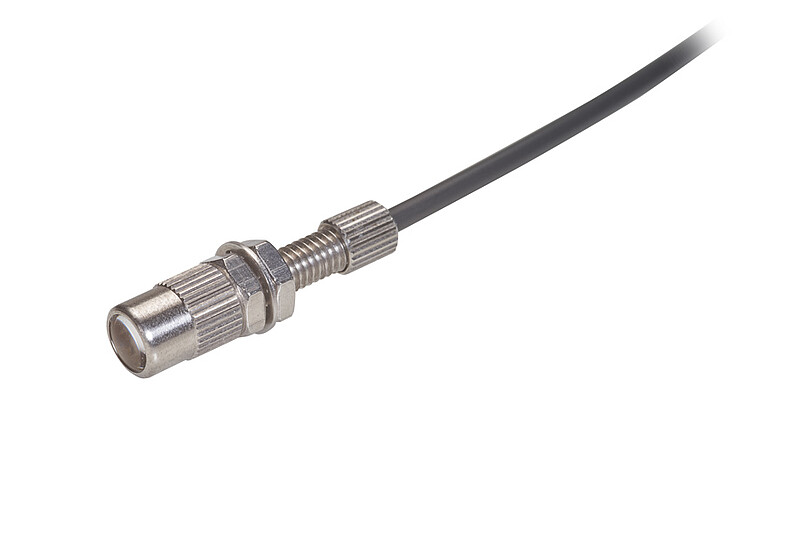

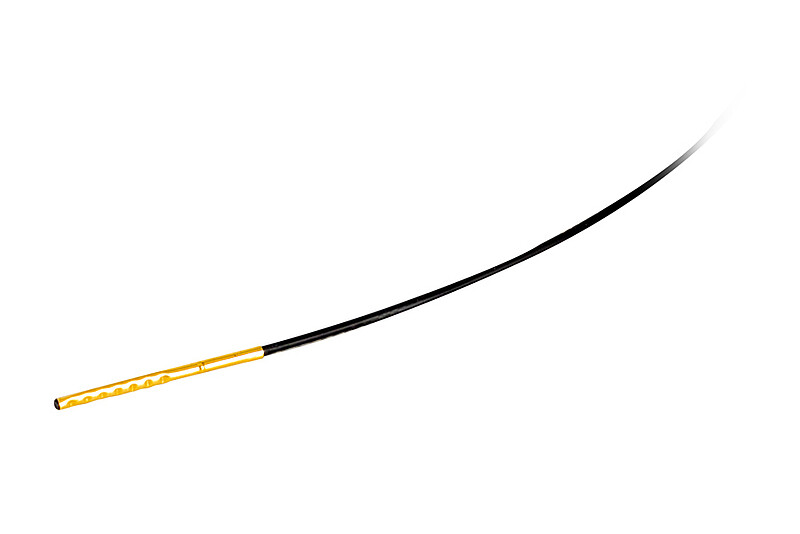

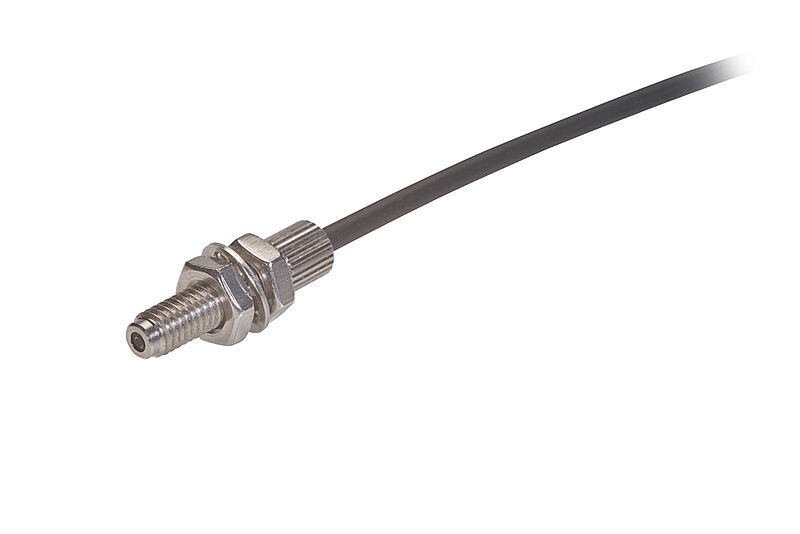

Sensors

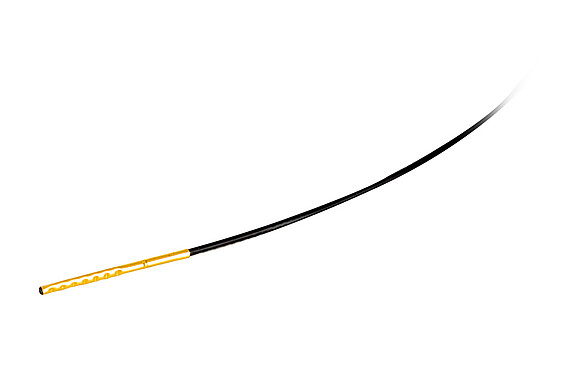

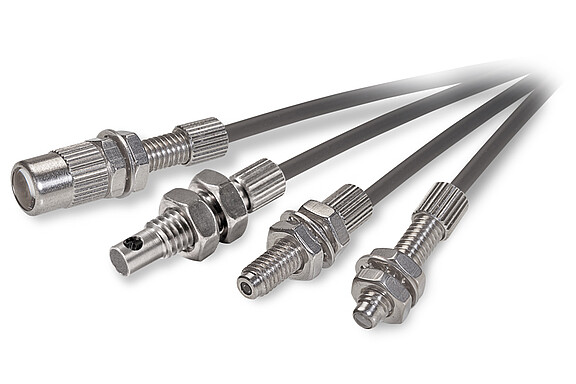

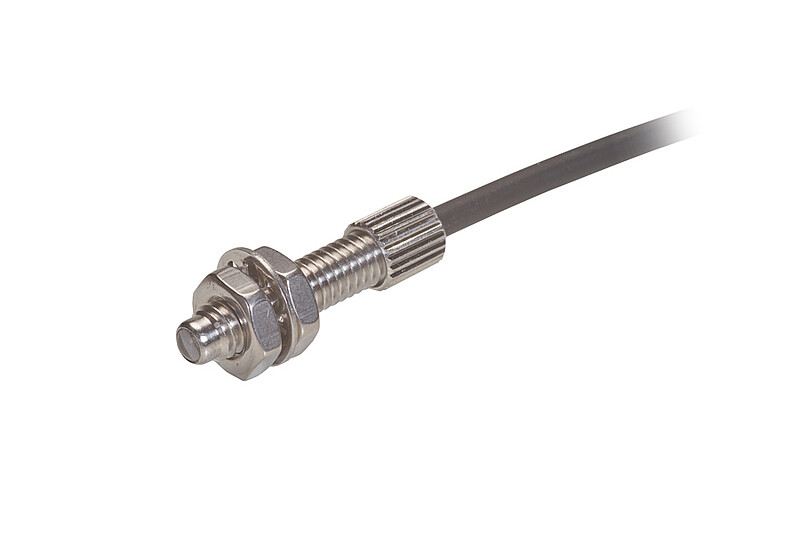

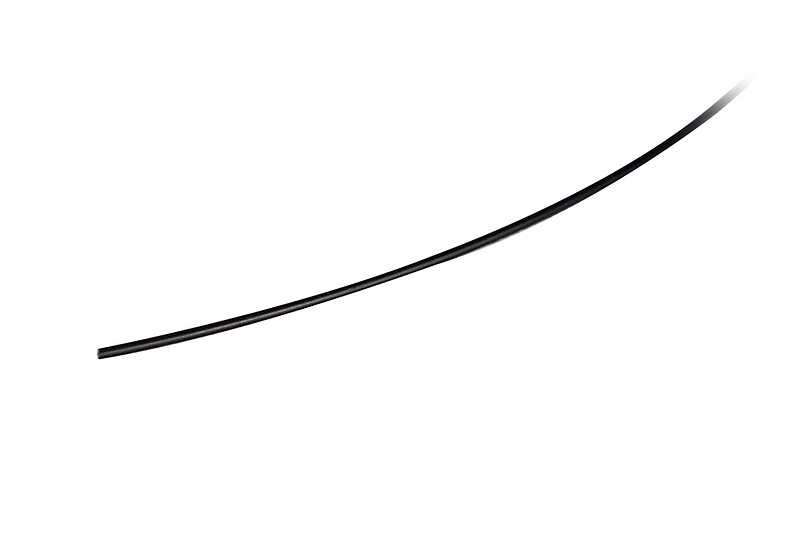

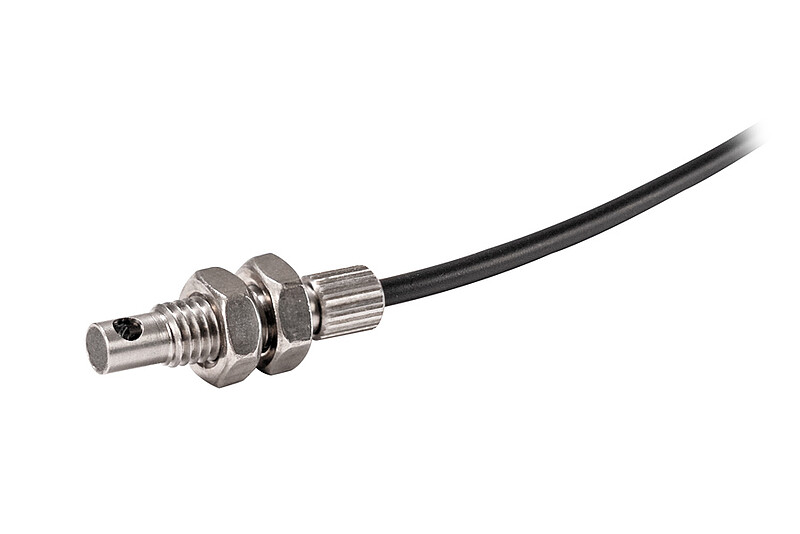

Operating the colorSENSOR MFA controller requires sensors that are used on the measuring point. The sensors reliably detect small light spots from 3 mm and can be individually combined depending on the measurement task. The high-quality receiver sensors with plastic fibre optics are particularly characterized by their small installation dimensions. This enables highly accurate testing at different points for individually arranged test specimens. The sensor portfolio covers a wide range of working distances and spot sizes. Other versions in different lengths and temperature ranges are available as options.
