Powerful 2D/3D laser scanners
scanCONTROL 30x2 laser scanners are powerful profile sensors in terms of size, accuracy and measuring rate. These laser scanners provide calibrated 2D profile data with up to approx. 8 million points per second. With a maximum profile frequency of 10 kHz, the scanners are designed for precise profile measurements in dynamic processes. The sensor matrix offers a resolution of 1,024 points with a point distance from 24 µm. This means that even small details can be detected reliably.
Characteristics
- Measuring range z-axis up to 600 mm
- Measuring range x-axis up to 380 mm
- Measurement speed up to 10 kHz
- Measuring rate up to approx. 8,000,000 points/sec
- Line linearity z-axis from 2 μm
- Resolution x-axis up to 1,024 points
- Available also with blue laser
- Compatible with Cognex VisionPro
- Fastest SMART evaluation directly in the sensor: up to 10 kHz
- Optimal connection to PLC due to UDP bundling without data loss
Large measuring range with 430 and 600 mm
The scanCONTROL 30x2 laser scanners are now also available with a large measuring field of 430 x 390 mm or 600 x 600 mm. This allows large measuring objects to be detected with high accuracy.

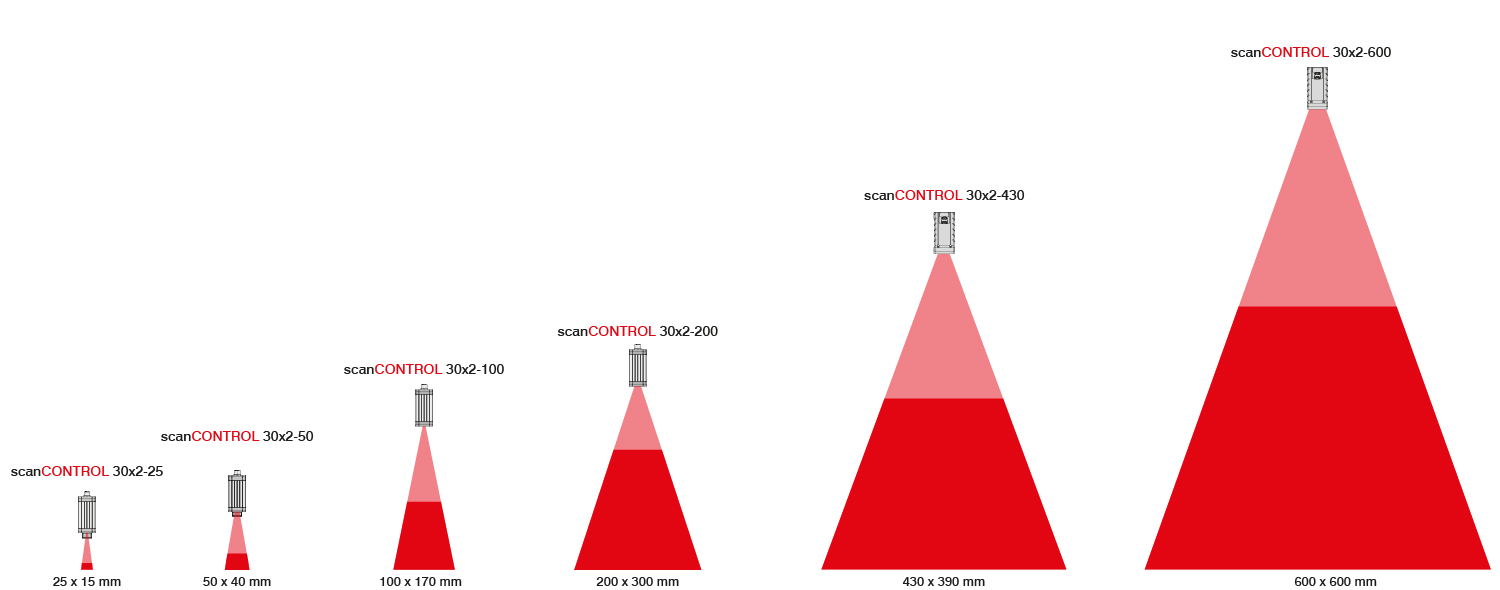

Available measuring ranges
