thicknessGAUGE 3D

Sensor system for precise 2D/3D measurements of strip and sheet materials

thicknessGAUGE 3D

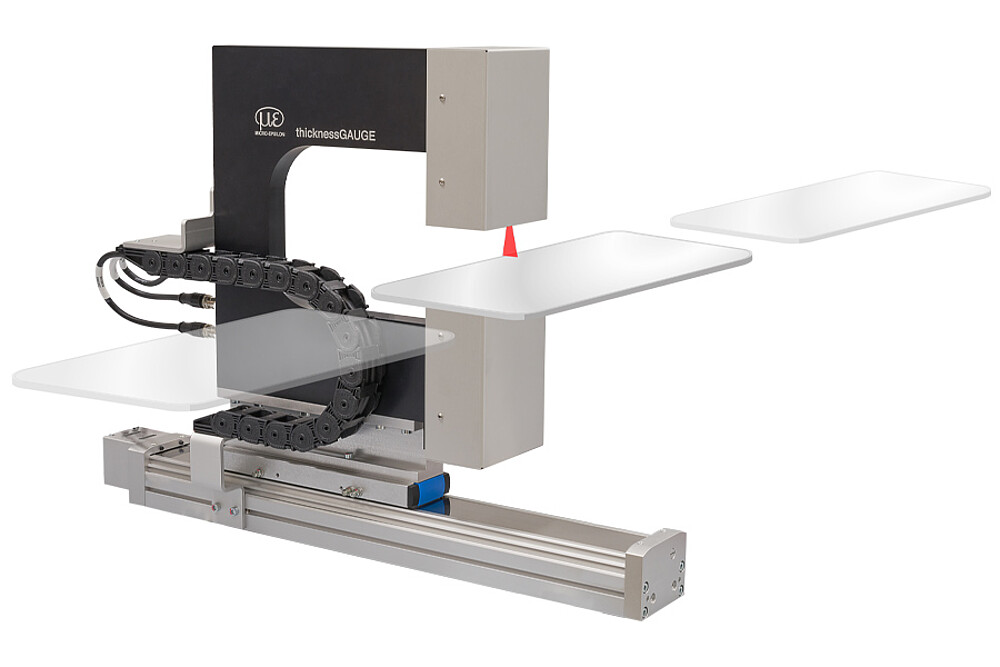

The thicknessGAUGE 3D is a sensor system for inline profile evaluation and 3D measurement of strip and sheet material, e.g. the edge of coating applications, weld seams or strand profiles. It consists of a stable frame with two laser scanners attached to it. The scanners detect the profile of the upper and lower surfaces and enable calculations within the individual profiles as well as combined as a 3D point cloud.

logo

Characteristics

  1. Sensors used: Laser profile sensors with red laser
  2. Measuring range: 15 mm (thickness) / max. 26.8 mm (profile)
  3. Resolution: 0.2 µm (thickness) / 1,024 points (profile)
  4. Accuracy: +/- 1.2 µm
  5. Measuring rate: 500 Hz
  6. Flexible positioning due to electromechanical axis
  7. Automatic calibration for constant precision
[]
