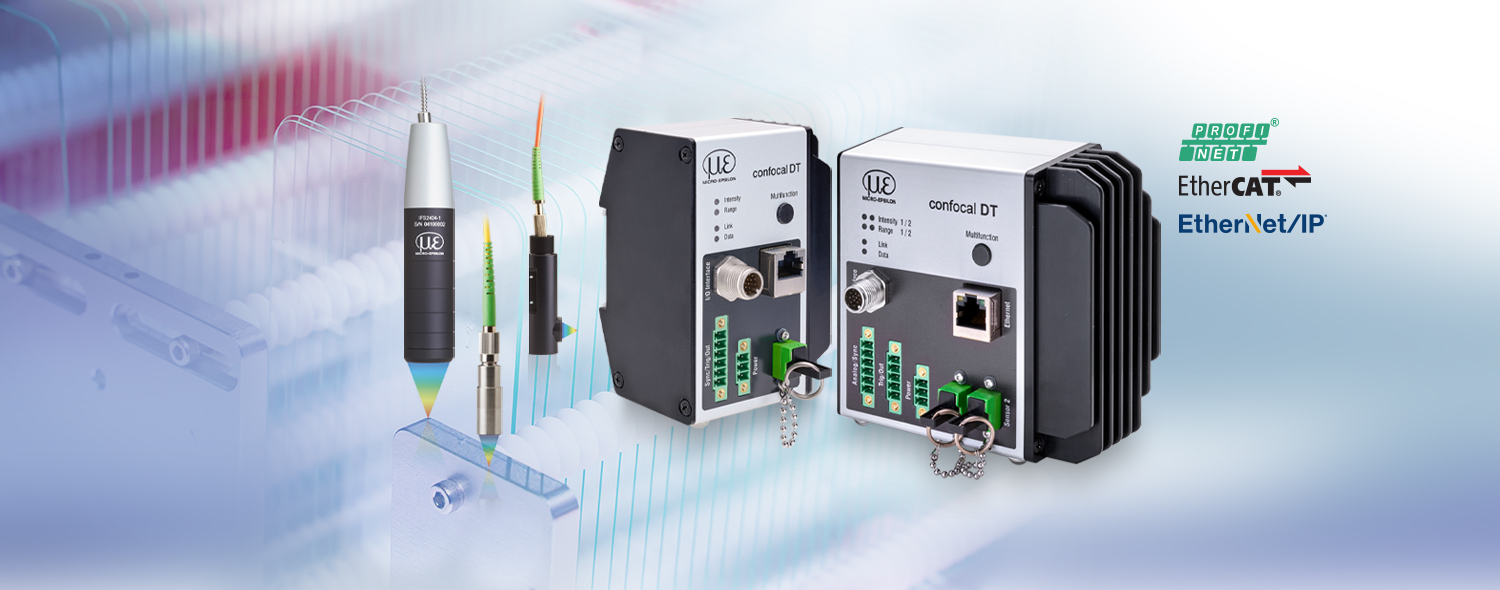

Powerful confocal chromatic controllers – precision meets compactness
The compact confocalDT IFC2411 / IFC2412 confocal chromatic controllers set new standards in precise distance and thickness measurements. They deliver accurate measurement results at high speed, take up hardly any space and therefore fit into even the smallest control cabinets. The flexible connection of all Micro-Epsilon sensors enables measurements on almost all surfaces. The system is particularly impressive in industrial series and OEM applications due to its excellent performance, dual-channel design and outstanding price-performance ratio.
Rely on maximum measurement accuracy in a space-saving format – for optimum efficiency in your production!
Characteristics
- High-precision measurements with 2 nm resolution
- Adjustable measuring rate up to 8 kHz for dynamic measurements
- Most compact confocal controller worldwide
- IP40 aluminium housing
- Numerous interfaces for easy integration: Ethernet, RS422, EtherCAT | IFC2411 also features PROFINET and EtherNet/IP
- Analog output (current and voltage)
- Encoder input
- Compatible with all confocalDT sensors (measuring ranges from 0.1 to 30 mm)
- Ideal for series applications and OEM
- Measuring channels: 1 for IFC2411, 2 for IFC2412
Developed for industrial production, OEMs and automation
Diverse interfaces provide the controllers with maximum flexibility for integration into machines and systems. A robust IP40 aluminium housing ensures maximum protection even under harsh conditions, so that highest precision and signal stability can be achieved. Thanks to the excellent price-performance ratio, economical solutions are possible from small to large series.
Now also available as the dual-channel version IFC2412
With the IFC2412, a dual-channel version of the IFC2411 controller is now also available. The IFC2412 has two channels with an adjustable measuring rate of 8 kHz and a submicrometre resolution of up to 2 nm. The low-cost and compact controllers expand the range of applications in the semiconductor, battery and machine building sectors. This means that two-sided thickness measurements can now also be performed with just one controller.
World’s most compact confocal controller
Their extremely compact and worldwide unique design makes these controllers ideal for easy integration into existing installations and systems. Their housings are up to 300 % smaller than those of comparable controllers, and extremely lightweight: 335 g for the 1-channel version and 670 g for the 2-channel version. They can be quickly mounted on a DIN rail and fit into even the smallest control cabinets.
Simple operation via web interface
Due to a user-friendly web interface, no additional software is necessary to configure the controller and the sensors. The web interface can be accessed via Ethernet and provides set up and configuration options. For thickness measurements, materials are stored in an expandable materials database.
