Long-range laser sensors
Some measurement tasks require large measuring ranges or a large measurement distance from the target object to be measured. For these types of applications, Micro-Epsilon offers long-range laser sensors that combine high accuracy with a large measurement distance.

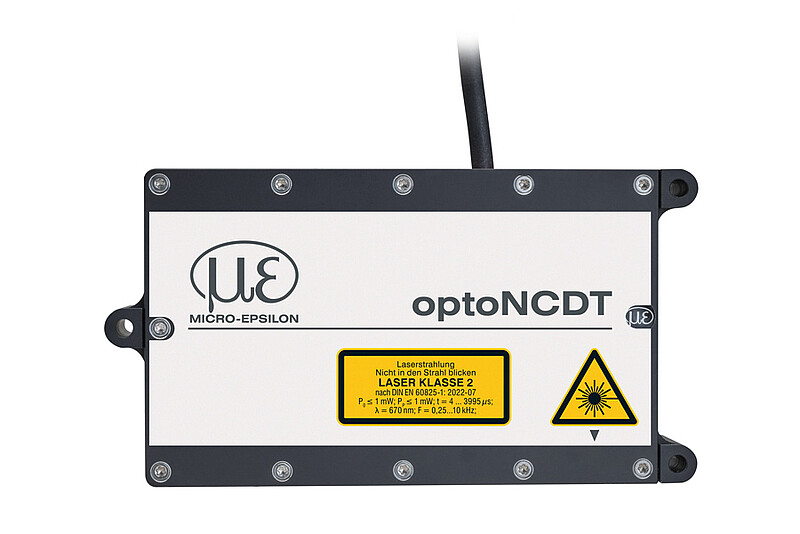

The optoNCDT 1910 laser sensor offers measuring ranges of 500 mm and 750 mm and is therefore designed for applications where a large measuring range or measurement distance is required. A high measuring rate up to 9.5 KHz and the intelligent exposure control ensure fast and reliable results in dynamic industrial applications. The small housing with integrated controller saves space during machine integration and can be operated at ambient temperatures of up to 200 °C with an optionally available cooling housing.
Characteristics
-
Measuring ranges (mm): 500 | 750
-
Linearity from 350 µm
-
Adjustable measuring rate up to 9.5 kHz
-
Analog and digital outputs
-
Compact design with integrated controller
-
Real-time adaptation to changing surfaces (Advanced Surface Compensation)
-
Predefined and individual presets in the web interface

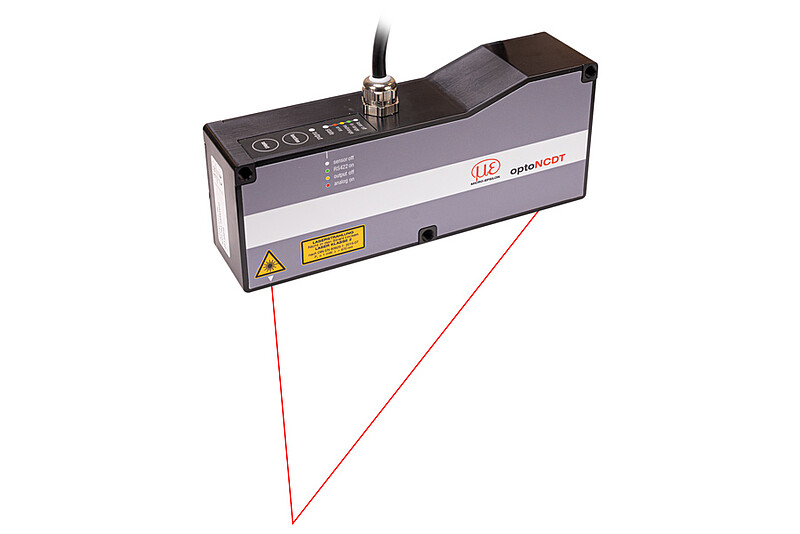

The optoNCDT 1760-1000 long-range laser sensor with a measuring range of 1000 mm is designed for applications where a high measurement distance is required. The sensor offers real-time surface compensation, which determines and controls the reflectance of the target during the exposure in real time. This enables
Characteristics
-

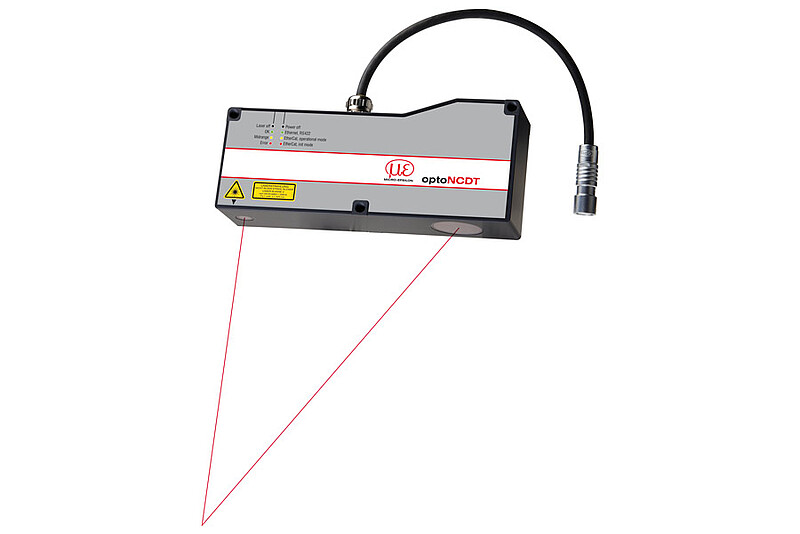

Measuring range optoNCDT 1710 (mm): 50
-
Measuring ranges optoNCDT 2310 (mm): 10 | 20 | 40 | 50
-
Linearity from 3µm
-
Resolution 0.5µm
-
Large offset distance with small measuring range
-
High measuring rate and resolution
-
Adaptation to changing surfaces
-
Sufficient distance in case of high object temperatures or moving parts
Downloads
- Data sheet optoNCDT 1710 (pdf, 2.81 MB)
- Data sheet optoNCDT 2310 (pdf, 3.93 MB)
- Operating Instructions optoNCDT 1700 (pdf, 3.24 MB)
- Assembly Instructions of high temperature protective housing SGHF-HT for optoNCDT 1700 / 2300 (pdf, 496.35 KB)
- CAD file 3D-model sensors ILD1710-50 / 1760-1000 / 2310-10/20/50, STEP (zip, 630.90 KB)
- MEDAQLib V5.1.1 (zip, 22.49 MB)
