SHSLab wavefront sensors

Shack-Hartmann wavefront sensors

The SHSLab wavefront sensor system is a powerful and comprehensive measurement solution for a multitude of optical applications, such as:

  • alignment of optical systems
  • measurement of imaging quality
  • surface shape measurement
  • laser beam characterisation

It pairs the SHSCam wavefront sensor head with SHSWorks wavefront analysis software and delivers high speed, single-shot measurements with excellent accuracy.

Contact
logo

Why SHSLab?

  1. High speed, single-shot measurements
  2. Excellent unreferenced accuracy
  3. Extreme dynamics and broad spectral range
  4. High intrinsic stability and reliability
  5. Powerful, customizable evaluation software
  6. Versatile and flexible usage
  7. Optocraft´s systems are in operation in many demanding customer applications
[]
Contact
MICRO-EPSILON UK & Ireland Ltd.
+44 151 355 6070
Contact form
Your request for: {product}
Please enter the result of the calculation below. This will avoid spam.
captcha
* Mandatory fields
We treat your data confidentially. Please read our data privacy statement.

SHSLab wavefront sensor applications

Alignment of optical systems
Alignment of optical systems: Wavefront guiding facilitates and speeds up your alignment process significantly.
Laser beam measurement
Laser beam measurement: The single shot wavefront measurement allows for fast determination of laserbeam parameters, control of adaptive optics and thermal lens measurement.
Optics testing
Optics testing: The precise measurement of the transmitted wavefront provides information on the Zernike wave aberrations and the corresponding PSF/MTF.

SHSCam family

SHSLab wavefront sensors consist of SHSCam wavefront sensor head and SHSWorks software. SHSCam wavefront sensors are available for different spectral ranges (UV, VIS/NIR, SWIR) and with different detection area and lateral resolution.

Data sheet : SHSCam: Overview wavefront sensor heads

SHSCam family

SHSLab performance - examples

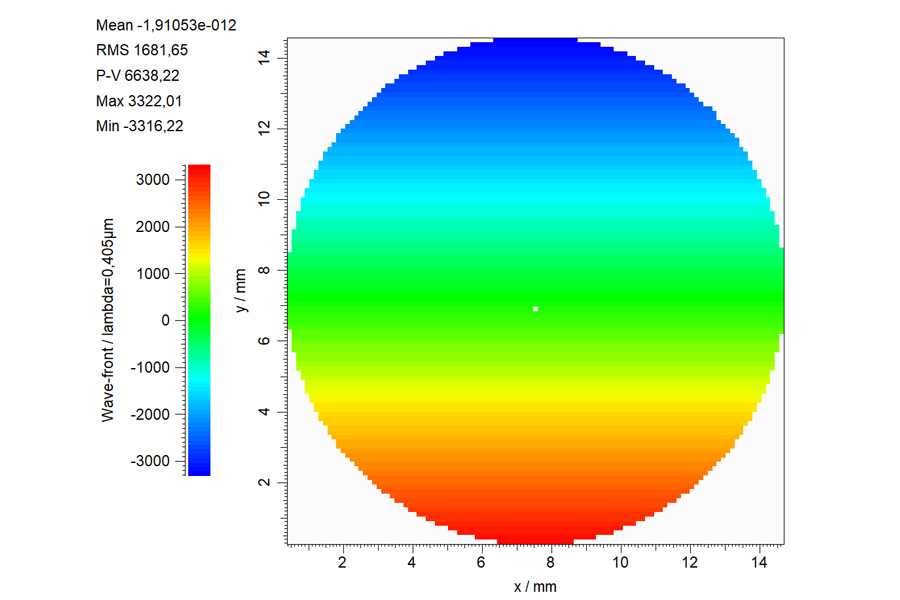

Extreme tilt dynamic
Extreme tilt dynamic: Over 1000 waves PV of tilt / defocus; ie ± 15° tilt

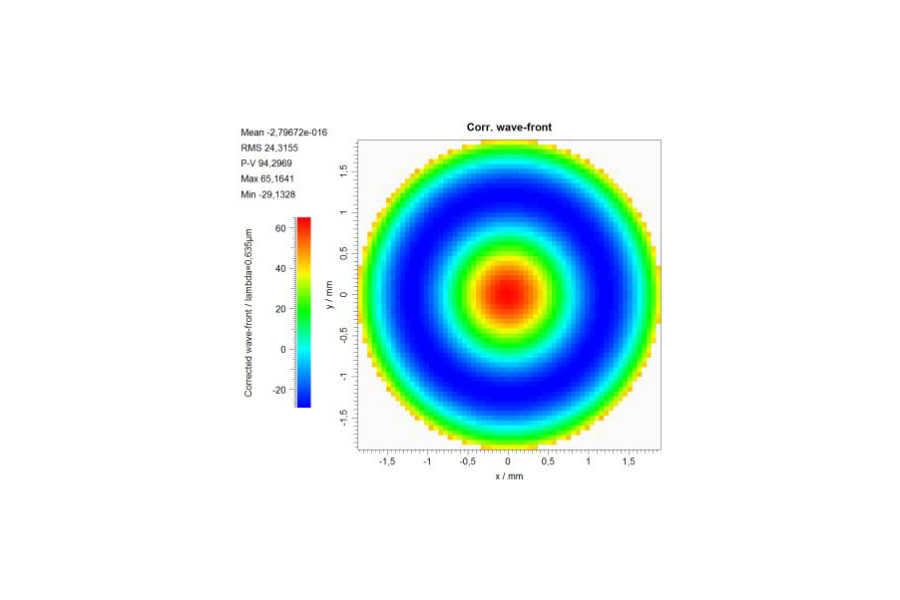

Extreme curvature dynamic
Extreme curvature dynamic: Over 100 waves PV of aberrations; ie ± 10mm local WF curvature
Excellent accuracy unreferenced sensor
Excellent accuracy of unreferenced sensor: 6nm rms measurement accuracy, no reference used

SHSWorks - advanced wavefront metrology software

Powerful and comprehensive wavefront analysis software package:

  • Complete Zernike analysis
  • PSF/MTF calculation
  • Laser beam parameter calculation
  • Quick-setup using predefined configurations
  • Pass/Fail analysis
  • Advanced reporting and data logging
Advanced wavefront metrology software
Wavefront - Micro lenses - Camera
Wavefront - Micro lenses - Camera

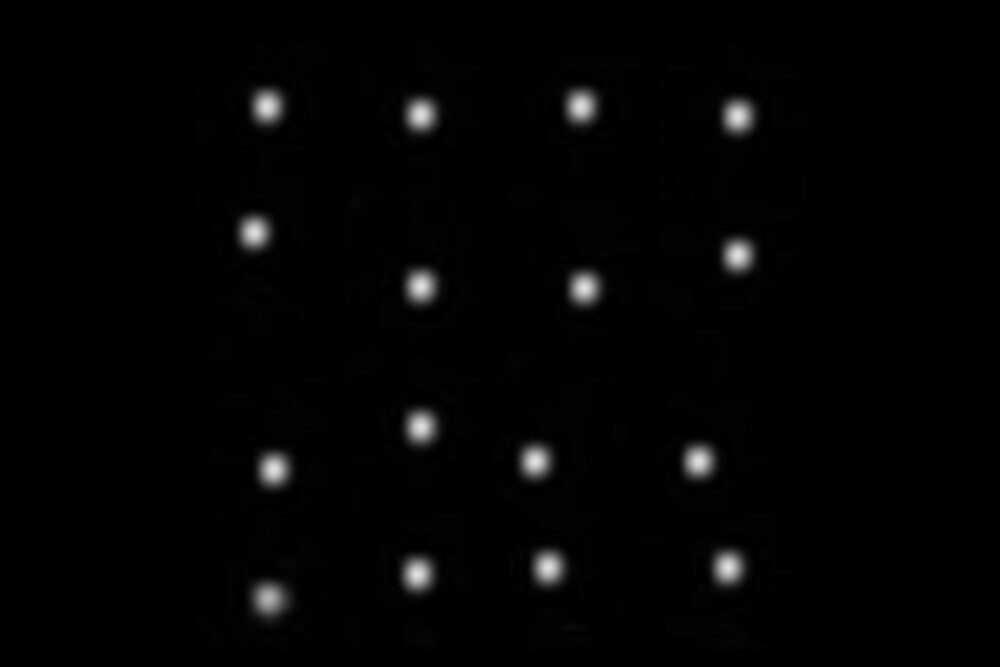

Spot detection
Spot detection
Wavefront reconstruction
Wavefront reconstruction

Advanced wavefront evaluation

Wavefront analysis using Zernike polynomials, calculation of PSF/MTF, laser beam parameters and refractive data.

Zernike polynomial fit
Zernike polynomial fit
PSF / MTF calculation
PSF / MTF calculation
Single shot measurement
Single shot measurement of phase and intensity: Calculation of beam waist radius W0, Rayleigh range ZR, beam waist position Z0 and M².

Why Optocraft?

Optocraft has been developing and manufacturing Shack-Hartmann wavefront sensors since 2001. With decades of experience in optical metrology and design, we constantly push the limits of this technology. Our systems can be found all over the world and cover even the most demanding applications. Our customers enjoy our dedicated and reliable support. We love to be challenged - try us!
