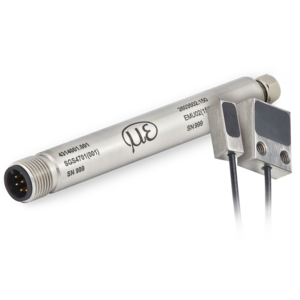

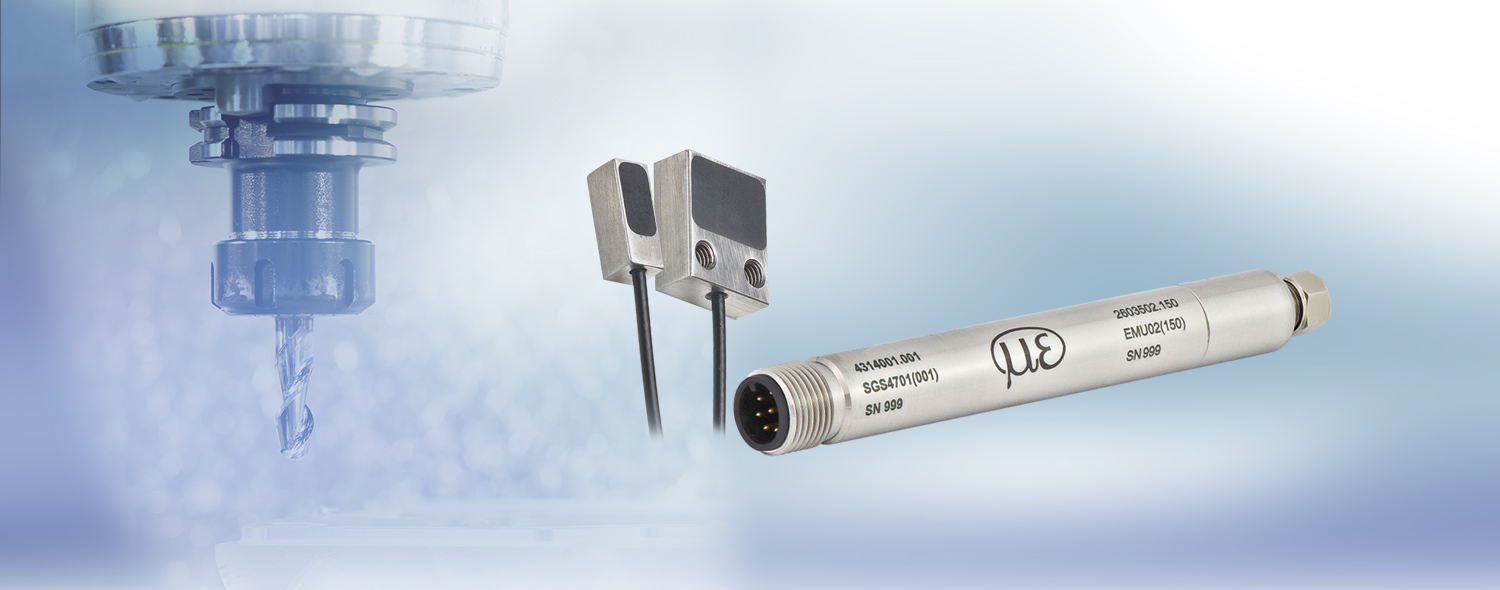

eddyNCDT SGS4701

Measures the thermal expansion in length of spindles

Thermal expansion measurement sensor for spindles

The SGS (Spindle Growth System) 4701 thermal expansion measurement sensor has been developed for high speed milling machine applications. During high speed milling, the heat generated creates thermal expansion which creates errors in milling depths on the work piece. In order to correct for this expansion, the SGS sensor measures the thermal and centrifugal force extension of the spindle and outputs this value to the machine tool controller to enable an offset correction to be made. The measurement takes places typically on the labyrinth-ring. As well as measuring linear thermal expansion, the temperature of the sensor is also detected and output.

logo

Characteristics

  1. Non-contact and wear-free measurement
  2. Cost-effective design
  3. Miniature sensor and controller, entirely integrable into spindle
  4. Calibration for ferromagnetic and non-ferromagnetic
  5. Integrated temperature measurement in the sensor
  6. Extreme temperature stability
[]
Contact
MICRO-EPSILON UK & Ireland Ltd.
Contact form
Your request for: {product}
Please enter the result of the calculation below. This will avoid spam.
captcha
* Mandatory fields
We treat your data confidentially. Please read our data privacy statement.

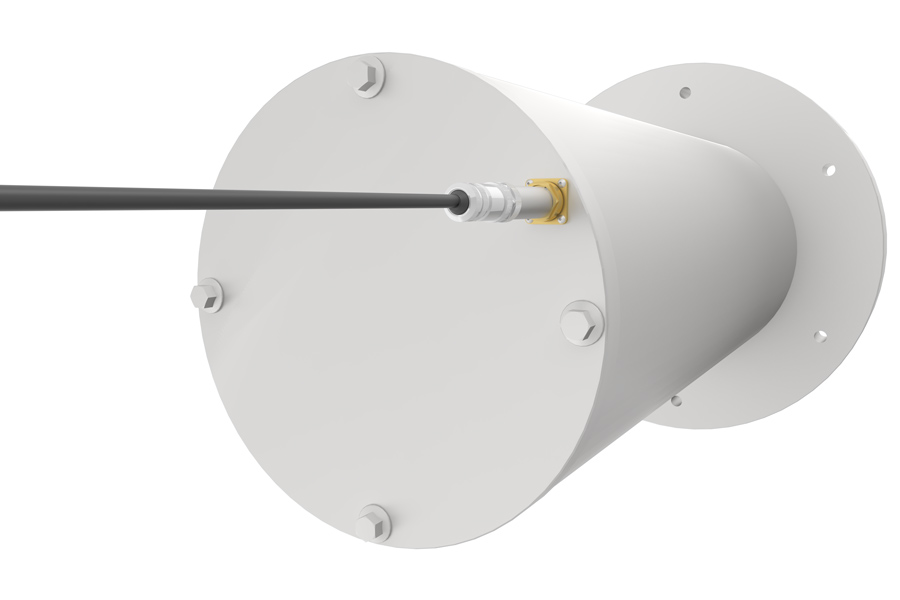

Compact structure

The SGS 4701 consists of a sensor, a sensor cable and a controller, factory calibrated for ferromagnetic and non-ferromagnetic measurement objects. Two miniature sensors enable it to be installed directly in the spindle. The compact controller can be installed on the spindle housing via a flange or directly in the spindle.

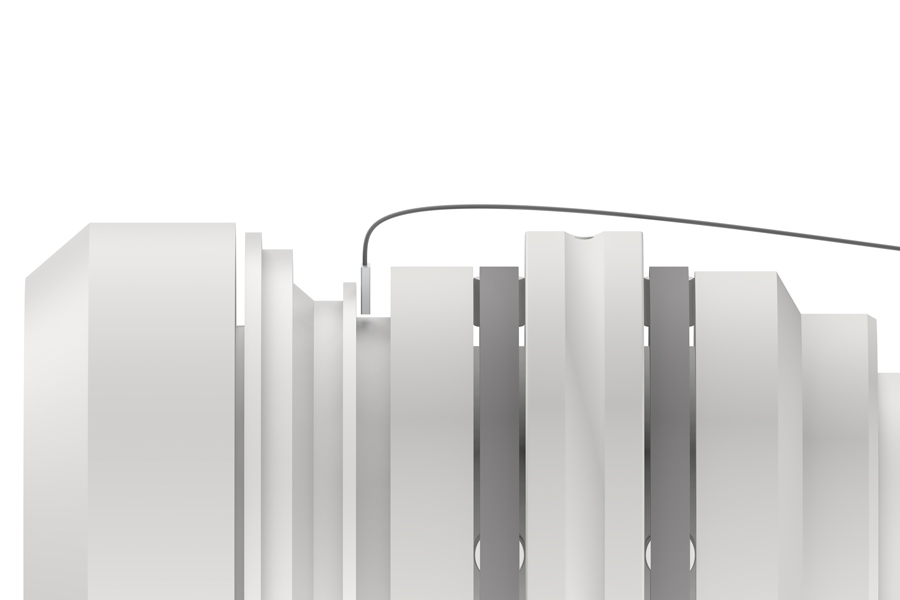

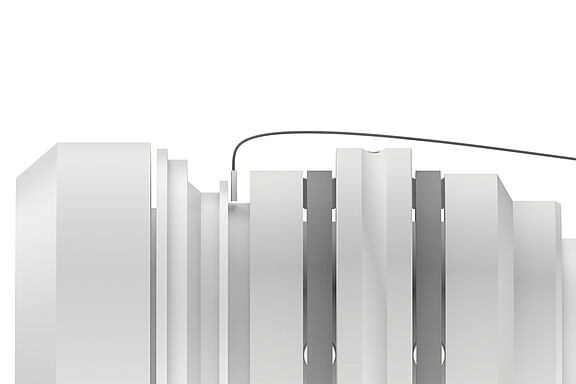

Robust design

The SGS 4701 operates according to the eddy current principle, which means that the measurement is non-contact and wear-free. This measuring method is also insensitive to disturbing influences such as heat, dust and oil.
