Industrial draw-wire sensors
The P draw-wire sensors feature a robust aluminium profile housing that enables particularly flexible installation using slot nuts. This well-designed construction allows simple and fast integration into a wide range of industrial applications.
With high wire acceleration and measuring ranges of up to 50 m, the sensors provide a high-performance solution for a wide variety of applications, from machine and system monitoring to building monitoring.
Precision, durability and flexibility make the P series the ideal choice for demanding measurement tasks in industry and automation.
High-performance sensor technology for a wide range of applications

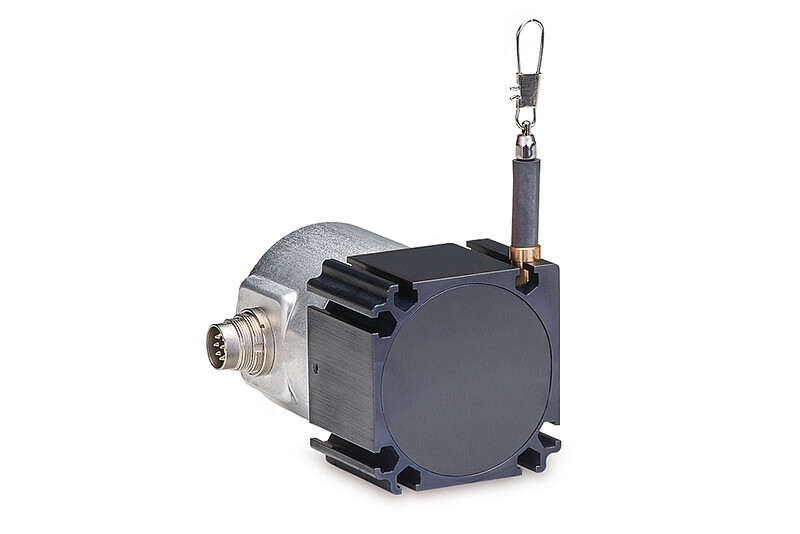

Characteristics
Analog:
- Measuring ranges: 100 | 150 | 300 | 500 | 750 | 1,000 | 1,500 mm
- Temperature range: -20 … +80 °C
- Linearity: ≤ ±0.1 % FSO
- Output type: Potentiometer, current, voltage
- Protection class: IP65
- Resolution: virtually infinite

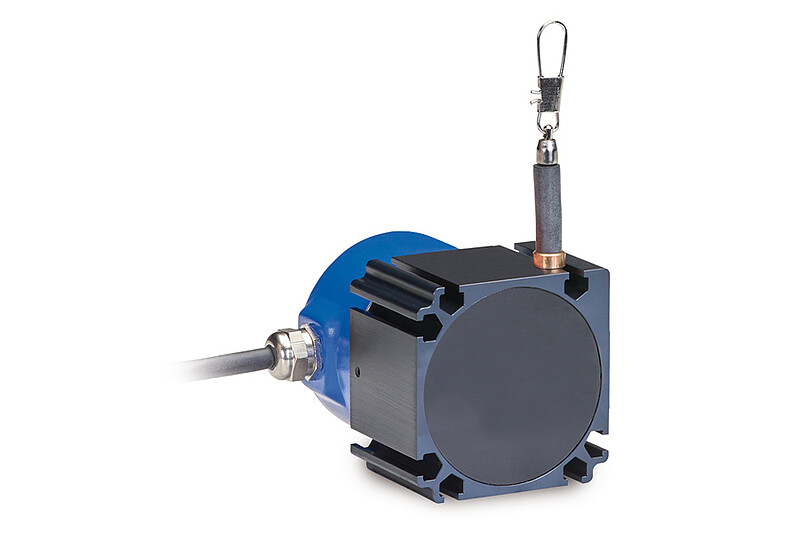

Digital:
- Measuring ranges: 1,000 | 1,500 mm
- Temperature range: -20 … +80 °C
- Linearity: ≤ ±0.02 % FSO
- Digital interface: PROFINET, Profibus DP, CANopen, EtherNet/IP, EtherCAT
- Protection class: IP65
- Resolution: 0.012 mm
Downloads
Datasheet wireSENSOR P60
Setup guide wireSENSOR P60
Setup guide wireSENSOR WDS P60 (new encoders)
Operating instructions wireSENSOR WDS P60 / P96 / P115 / P200
Operating instructions wireSENSOR WDS P60 / P96 / P115 / P200 (new encoders)
CAD file, 3D model "wireSENSOR P60/P96" analogue, STEP
CAD file, 3D model "wireSENSOR P60/P96" digital, STEP

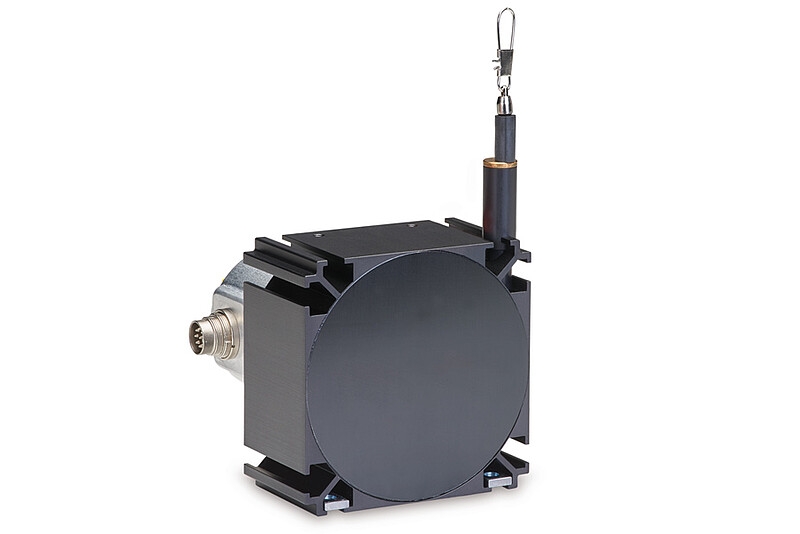

Characteristics
Analog:
- Measuring ranges: 2,000 | 2,500 mm
- Temperature range: -20 … +80 °C
- Linearity: ≤ ±0.1 % FSO
- Output type: Potentiometer, current, voltage
- Protection class: IP65
- Resolution: virtually infinite

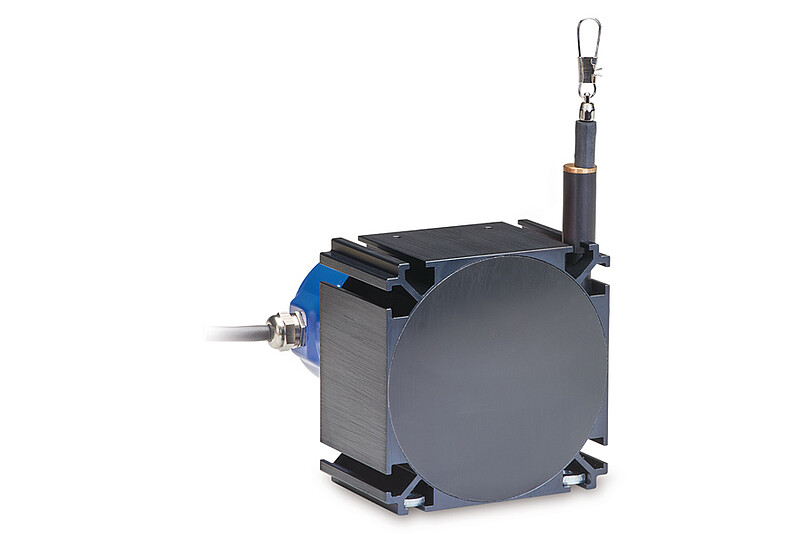

Digital:
- Measuring ranges: 3,000 mm
- Temperature range: -20 … +80 °C
- Linearity: ≤ ±0.02 % FSO
- Digital interface: PROFINET, Profibus DP, CANopen, EtherNet/IP, EtherCAT
- Protection class: IP65
- Resolution: 0.032 mm
Downloads
Datasheet wireSENSOR P96
Setup guide wireSENSOR P96
Setup guide wireSENSOR WDS P96 (new encoders)
Operating instructions wireSENSOR WDS P60 / P96 / P115 / P200
Operating instructions wireSENSOR WDS P60 / P96 / P115 / P200 (new encoders)
CAD file, 3D model "wireSENSOR P60/P96" analogue, STEP
CAD file, 3D model "wireSENSOR P60/P96" digital, STEP

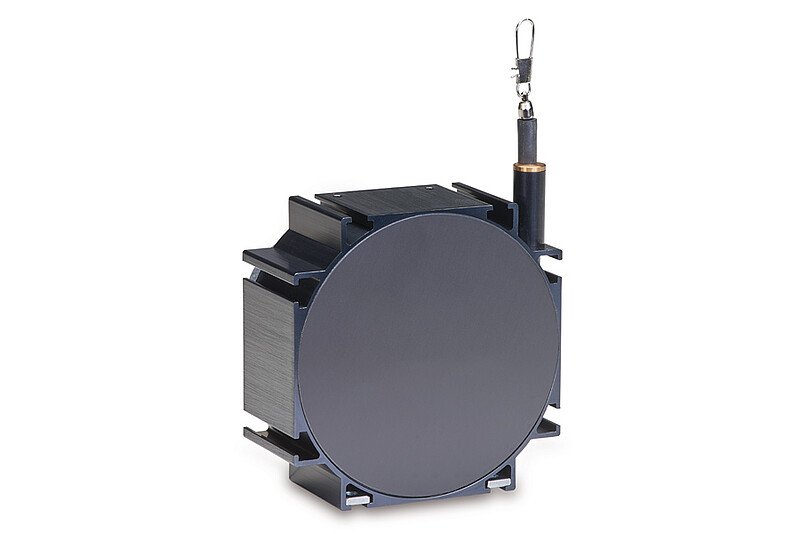

Characteristics
Analog:
- Measuring ranges: 3,000 | 4,000 | 5,000 | 7,500 | 10,000 | 15,000 mm
- Temperature range: -20 … +80 °C
- Linearity: ≤ ±0.1 % FSO
- Output type: Potentiometer, current, voltage
- Protection class: IP65
- Resolution: virtually infinite

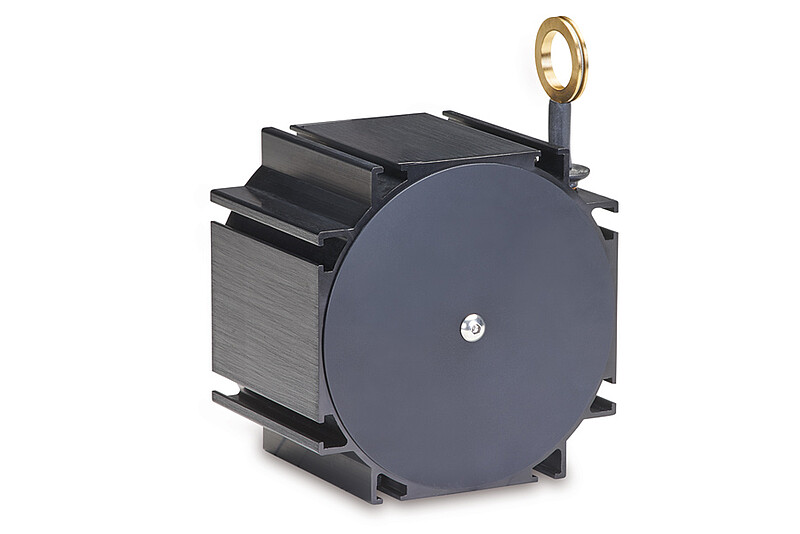

Digital:
- Measuring ranges: 5,000 | 7,500 | 10,000 | 15,000 mm
- Temperature range: -20 … +80 °C
- Linearity: ≤ ±0.01 % FSO
- Digital interface: PROFINET, Profibus DP, CANopen, EtherNet/IP, EtherCAT
- Protection class: IP65
- Resolution: 0.038 mm
Downloads
Datasheet wireSENSOR P115
Setup guide wireSENSOR P115
Setup guide wireSENSOR WDS P115 (new encoders)
Operating instructions wireSENSOR WDS P60 / P96 / P115 / P200
Operating instructions wireSENSOR WDS P60 / P96 / P115 / P200 (new encoders)
CAD file, 3D model "wireSENSOR P115" analogue, STEP
CAD file, 3D model "wireSENSOR P115" digital, STEP

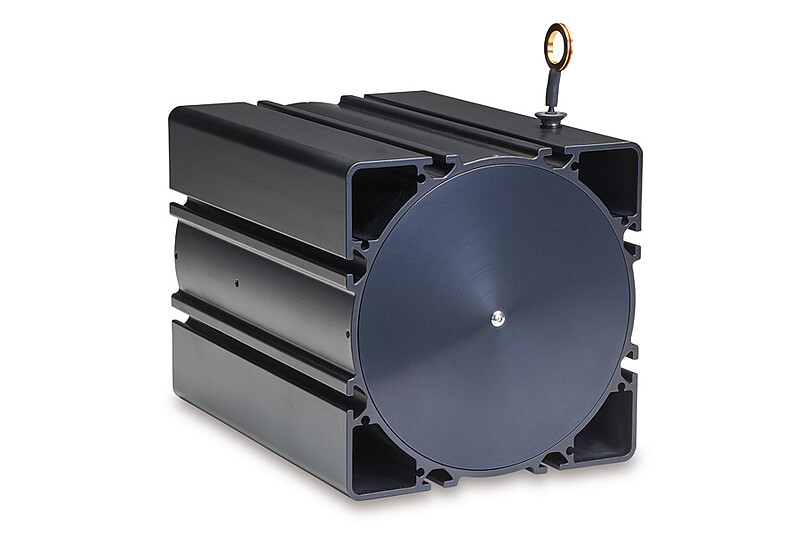

Characteristics
Digital:
- Measuring ranges: 30,000 | 40,000 | 50,000 mm
- Temperature range: -20 … +80 °C
- Linearity: ≤ ±0.01 % FSO
- Digital interface: PROFINET, Profibus DP, CANopen, EtherNet/IP, EtherCAT
- Protection class: IP65
- Resolution: 0.061 mm
Downloads
Datasheet wireSENSOR P200
Setup guide Draw-wire mechanisms
Setup guide wireSENSOR WDS P200 (new encoders)
Operating instructions draw-wire mechanism
Operating instructions wireSENSOR WDS P60 / P96 / P115 / P200 (new encoders)
CAD file, 3D model "wireSENSOR P200", STEP
