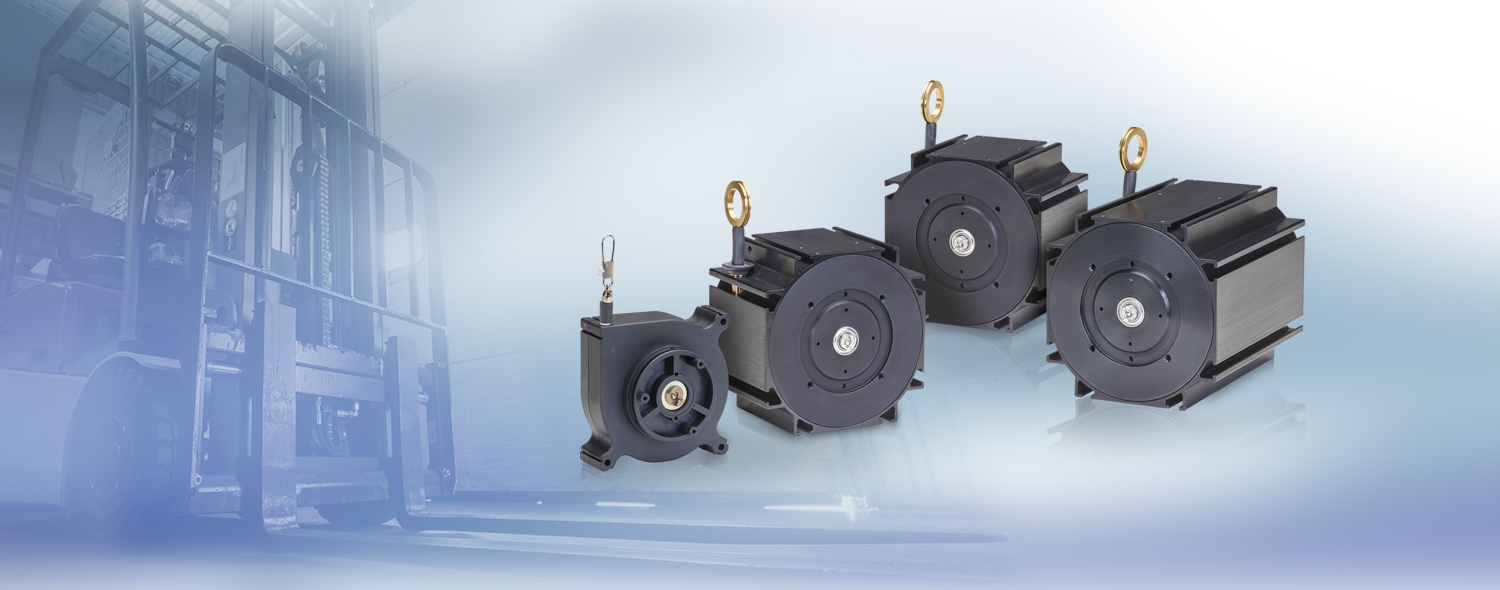

Draw-wire mechanics for customer-specific encoder mounting

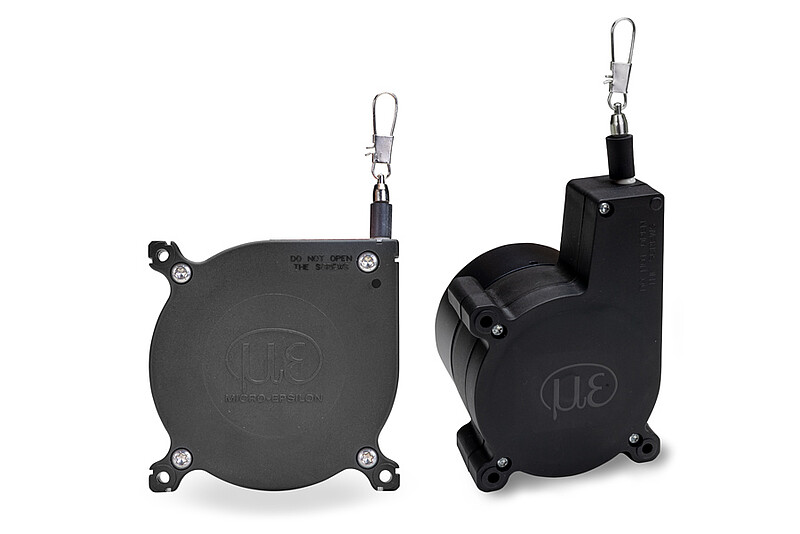

The wireSENSOR mechanics from Micro-Epsilon are designed for mounting of incremental and absolute encoders. They enable you to individually determine the interface, the resolution and the type of connection which can be adapted for further signal processing. High quality precision components and their robust design ensure high operational safety and a long service life even under harsh industrial conditions of use. For series applications involving a large number of pieces, we develop and manufacture tailor-made OEM designs.
Downloads
- Catalog wireSENSOR draw-wire mechanics (Draw-wire mechanics for installation of rotary encoders) (pdf, 2.66 MB)
- Operating Instructions, wireSENSOR, WPS Draw-Wire Mechanics (pdf, 963.27 KB)
- Setup Guide wireSENSOR WPS series, mechanism (pdf, 1.12 MB)
- Operating Instructions wireSENSOR WPS, Draw-wire Mechanisms K100-M (pdf, 1.75 MB)
- Setup Guide wireSENSOR WPS series, mechanisms K100-M (pdf, 2.78 MB)

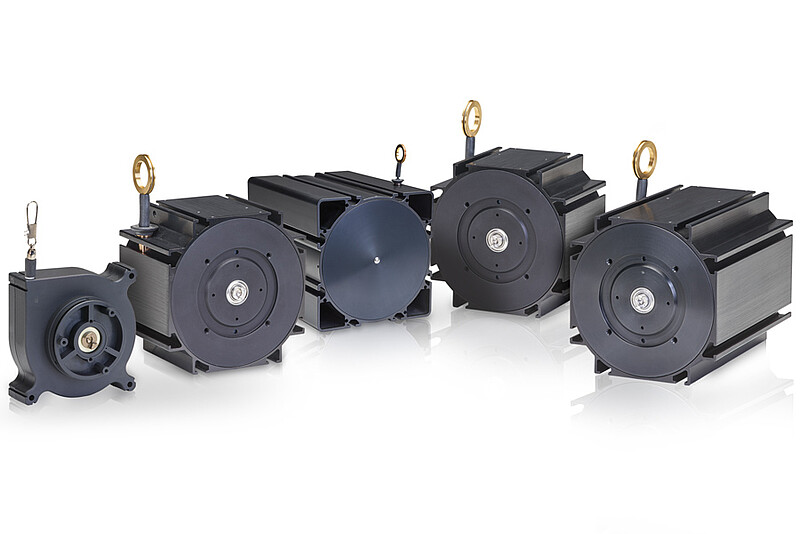

The wireSENSOR mechanics of the P60, P96, P115 and P200 series are designed for easy mounting of an incremental or absolute encoder. Therefore, the user can individually choose the interface, resolution and connection type. Their robust aluminium housing makes these mechanics ideal for industrial environments.
Downloads
- Catalog wireSENSOR draw-wire mechanics (Draw-wire mechanics for installation of rotary encoders) (pdf, 2.66 MB)
- Operating Instructions wireSENSOR take up spool (Z60 / P96 / P115 / P200) (pdf, 1.47 MB)
- Setup Guide draw wire sensor take up spools (pdf, 445.75 KB)
- Operating Instructions wireSENSOR mechanism P85 (pdf, 1.08 MB)
- Setup Guide wireSENSOR mechanism P85 (pdf, 615.11 KB)
- CAD file 3D-model "WDS mechanics", STEP (zip, 2.86 MB)
- CAD file 3D-model "wireSENSOR accessories", STEP (zip, 112.92 KB)
