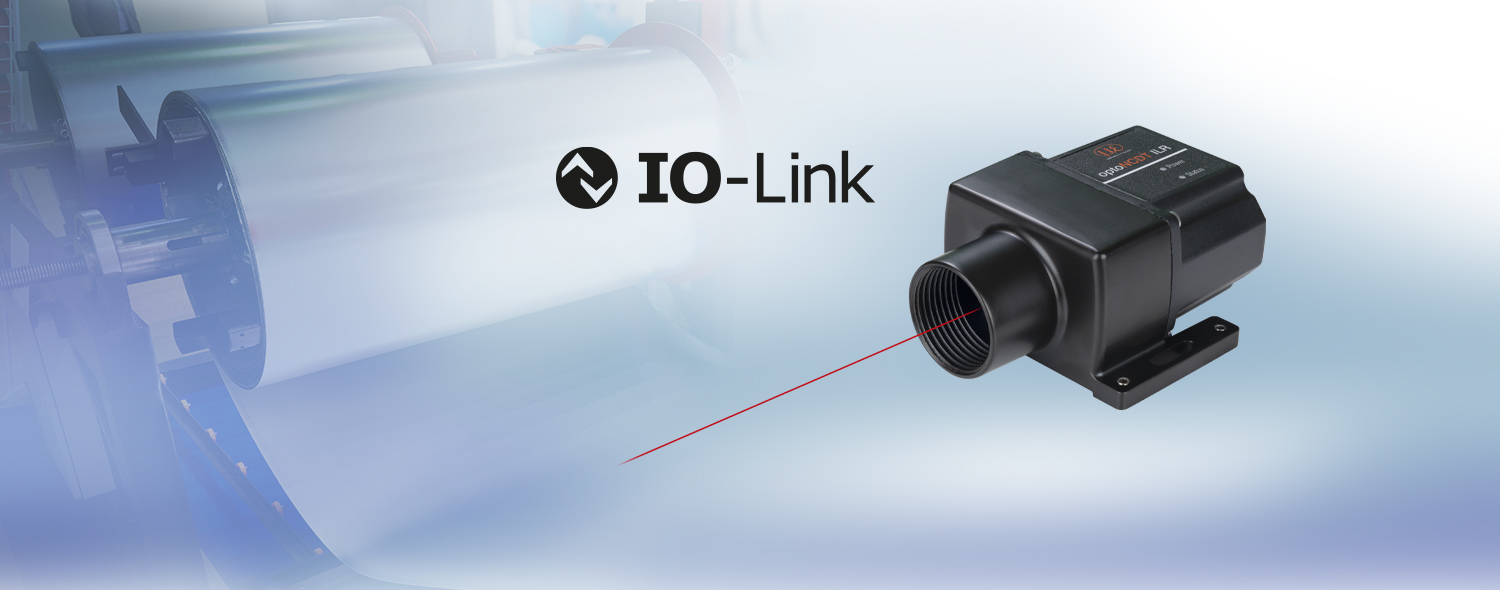

Powerful laser distance sensor
The optoNCDT ILR3800-100 laser distance sensor stands out in particular due to its high performance in a compact design. It is designed for precise distance measurements in industrial environments. Distance measurements up to 100 m are possible. With reflector even up to 150 m. The integrated AUTO measurement mode enables reliable measurement even on dark, partly reflecting and remote measuring objects. Thanks to the very high signal stability, ILR3800-100 sensors can be used for distance measurements on numerous surfaces
Characteristics
- Large measuring range up to 100 m (with reflector up to 150 m)
- Very high signal stability on numerous surfaces
- Linearity <±1 mm
- Repeatability <300 µm
- Resolution 0.1 mm
- Analog output and digital interfaces (RS422 / USB / PROFINET / Ethernet/IP)
- Robust sensor design
- Compact and lightweight design
- Ideal for industrial applications in series production
- High protection class IP67 for outdoor use
Compact sensor design for versatile measurement tasks
The laser distance sensor impresses with very high signal stability and is, among other things, used in logistics and automation technology, the metals industry and production monitoring. The robust aluminium housing and low weight allow easy integration into numerous industrial environments.
