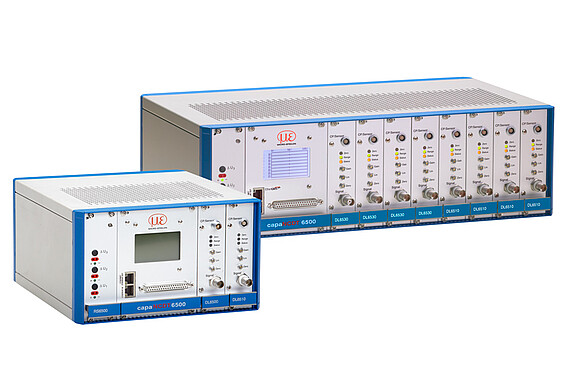

capaNCDT 6500

Nanometer multi-channel system

Highest performance, ultra high resolution, multi channel capacitive system

The capaNCDT 6500 series is a multi-channel capacitive displacement measurement system that offers sub-nanometre resolution, unmatched temperature stability and rapid changeover of sensors without any re-calibration required.

Due to its extreme resolution and flexibility, the system is ideal for high-accuracy displacement, positioning, thickness, gap, drift or creep measurements in R&D applications, test laboratories, quality assurance, academic institutions, semiconductor manufacturing, military, aerospace and defence applications where measurements in the sub micrometre and nanometre measurement scale are required.

The capaNCDT 6500 uses a unique, active-driven, hermetically sealed, triaxial RF cable, in combination with an active guarded three-electrode sensor. The system is therefore electron leakage-proof, creating a protected and homogenous measurement field. This means the user obtains stable, precise, interference-free measurement data.

The capaNCDT 6500 comes with an Ethernet or EtherCAT port with 24-bit resolution. Each measurement channel has a unique IP addresses, so that measured data can be easily output and then shared over a network. As the measurement signal is output digitally, the system does not suffer any loss in resolution or measurement accuracy compared to conventional analogue systems – the signal can even be transmitted to the other side of world!

logo

Characteristics

  1. Measuring ranges (mm): 0.05 | 0.2 | 0.5 | 0.8 | 1 | 2 | 3 | 5 | 10
  2. Linearity max. 0.01µm
  3. Resolution max. 0.0375nm
  4. Extremely high stability and accuracy
  5. Resolution in the subnanometre range
  6. Modular – up to 8 channels
  7. External or internal preamplifier
  8. Ethernet port
  9. Wear-free and maintenance-free
  10. Linear characteristics
  11. Suitable for all electrically conductive materials
  12. High measuring rates
[]
Contact
MICRO-EPSILON UK & Ireland Ltd.
Contact form
Your request for: {product}
Please enter the result of the calculation below. This will avoid spam.
captcha
* Mandatory fields
We treat your data confidentially. Please read our data privacy statement.

Maximum resolution

The capaNCDT 6500 system is designed for measurements tasks that require sub-nanometre resolution. Its strengths are demonstrated particularly well in positioning tasks in the semiconductor industry and laboratory applications. The modular capaNCDT 6500 is designed for multi-channel applications. Up to eight sensors can be connected via a preamplifier to the signal conditioning electronics.

Ease of use via web interface

Due to a user-friendly web interface, the entire configuration process of controller and sensors is carried out without using any additional software. The web interface can be accessed via Ethernet and provides set up and configuration options for filters, arithmetic links and other useful parameters such as triggering, measurement value storage and linearisation.

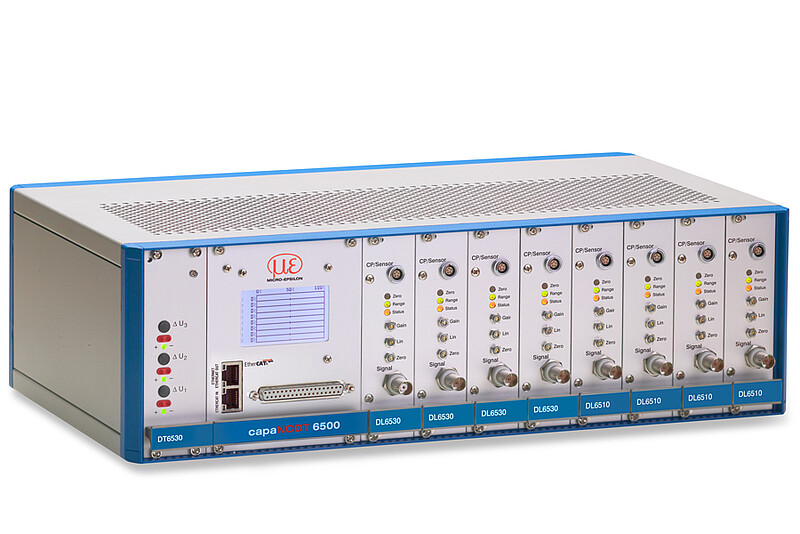

The capacitive DT6530 controller offers maximum resolution and signal stability for capacitive displacement measurement. The controller can be operated with up to 8 channels and is not only suitable for electrically conductive objects, but also for insulators. In addition to analogue outputs, the controller is also equipped with an Ethernet digital interface. The DT6530 controller is compatible with all sensors and cables of the capaNCDT series.

Characteristics

  1. Resolution dynamic 0.002 % FSO (8.5kHz)

  2. Frequency response 8.5kHz (-3 dB) (switchable 20Hz; 1kHz; 8.5kHz)

  3. Analogue output 0...10V (short circuit proof), 4...20mA; 0...20mA

  4. Digital interface Ethernet 24 Bit; EtherCAT

  5. Special tuning: up to quadruple standard cable length

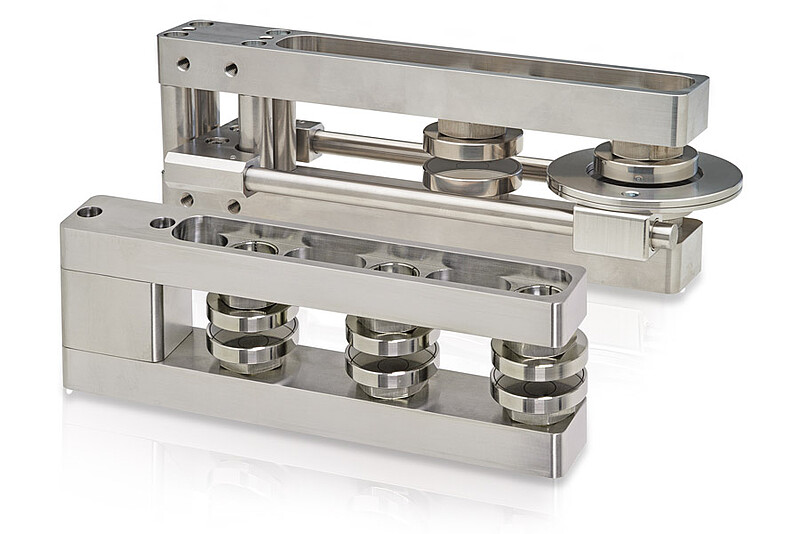

The mounting frame is designed for use with capacitive sensors for two-sided thickness measurements and helps to align the measuring points with one another. The frame allows for the sensors to lie exactly on one axis, meaning that the measuring points are arranged congruently. This prevents measurements at an offset and a reliable measurement result is achieved with the highest possible precision. The mounting frames provide space for up to 6 sensors. Two sensors each form a measuring point.

Characteristics

  1. Multi-track thickness measurement at up to 3 points simultaneously

  2. High temperature stability for precise measurements at temperatures of up to 100 °C

  3. Suitable for vacuum

  4. Extremely compact design

  5. Easy integration and retrofitting in existing systems

  6. Compatible with capaNCDT sensors

  7. Calibratable design for high precision in thickness measurements
