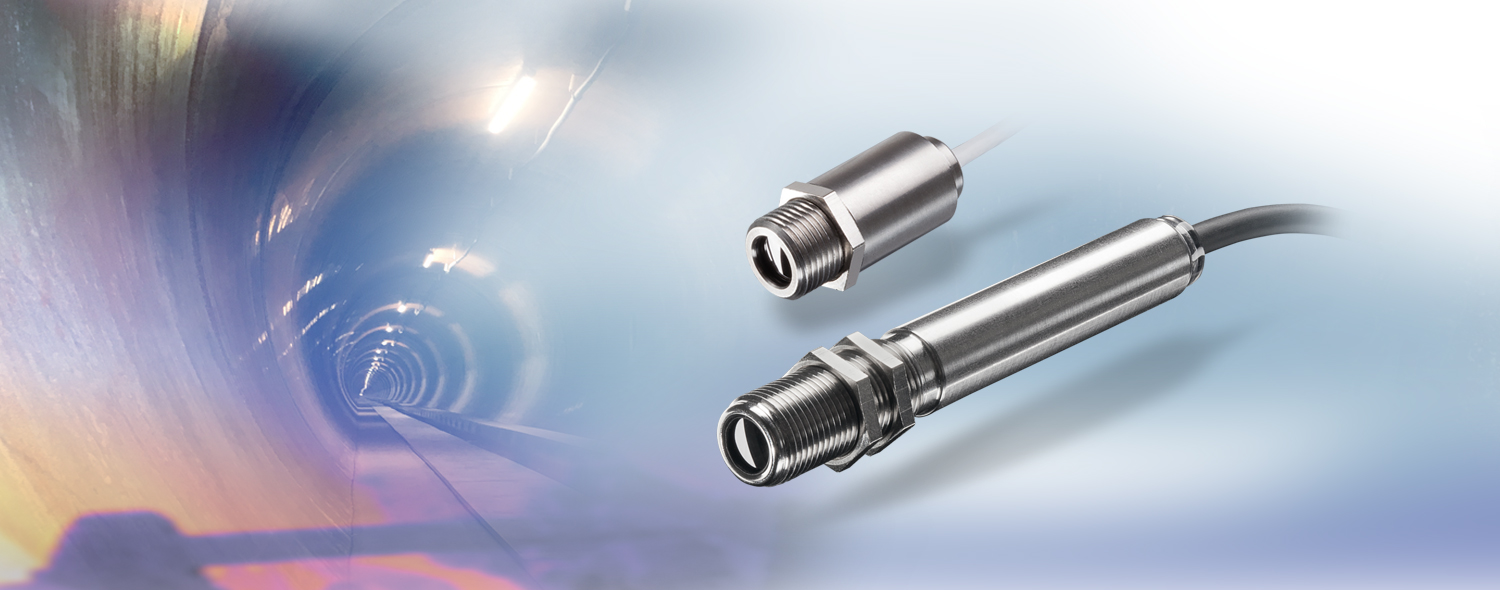

thermoMETER CS

Miniature infrared sensors for OEM applications

Infrared pyrometer with integrated controller for OEM

The infrared thermoMETER CS temperature sensors are equipped with a miniature sensor that is particularly suitable for installation in confined spaces. The small size and temperature resistance up to 120°C open up a wide range of applications.The infrared temperature sensors are available in different versions, e.g., with laser aiming or as a two-wire version for easy integration.

Contact
logo

Characteristics

  1. Controller in the sensor or cable
  2. Temperature range from -40 °C to +1030°C
  3. OEM products for high-volume production
  4. Robust, silicon-coated lens
  5. Adjustable signal processing
[]
Contact
MICRO-EPSILON UK & Ireland Ltd.
+44 151 355 6070
Contact form
Your request for: {product}
Please enter the result of the calculation below. This will avoid spam.
captcha
* Mandatory fields
We treat your data confidentially. Please read our data privacy statement.

Infrared software Compact Connect included

The temperature analysis software Compact Connect has been developed specifically for the thermoMETER series of temperature measurement sensors. It allows extensive documentation and analysis of temperature measurement data, as well as configuration and saving of the sensor parameters. It is licence-free and included in every sensor shipment.

Temperaturanalysesoftware Compact Connect

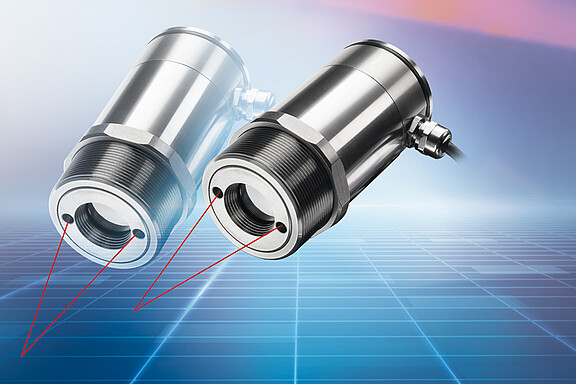

Miniature infrared sensor - thermoMETER CSlaser

Characteristics

  1. Measuring range (°C): -30 to 1000

  2. Optical resolution 50:1

  3. Spectral range 8 to 14µm

  4. Up to 85°C ambient temperature without cooling

  5. Integrated electronics

  6. High optical resolution

  7. Selectable close focus

  8. Emissivity adjustment directly at the sensor or via software

  9. Laser sighting for spot size marking

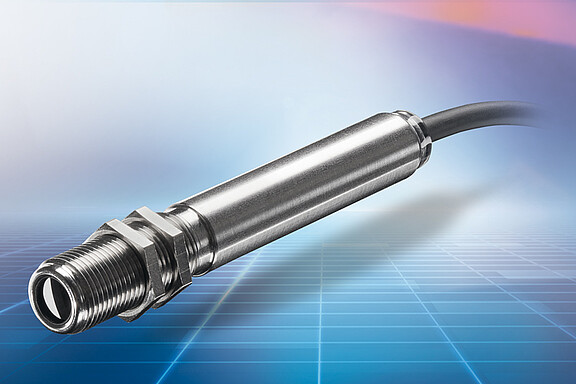

Compact infrared sensor - thermoMETER CS

Characteristics

  1. Measuring range (°C): -50 to 400

  2. Optical resolution 15:1

  3. Spectral range 8 to 14µm

  4. Up to 80 °C ambient temperature without cooling

  5. Integrated electronics with LED alarm indication and smart sighting aid

  6. Scalable analogue output

  7. Best price – ideal for OEM

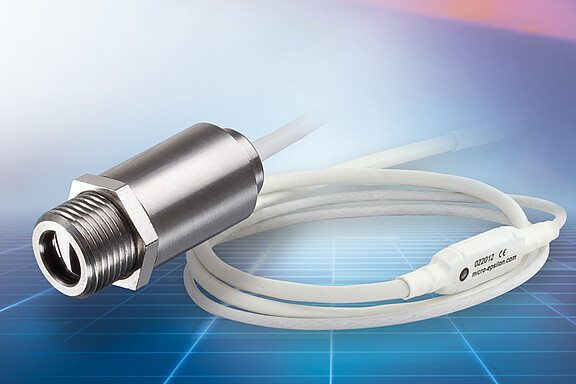

Compact OEM infrared sensor - thermoMETER CSmicro

Characteristics

  1. Measuring range (°C): -40 to 1030

  2. Optical resolution 15:1

  3. Spectral range 8 to 14 µm

  4. Ambient temperatures up to 120 °C without cooling

  5. Electronics integrated in the cable

  6. Temperature resolution up to 0.15°C

  7. Best price – ideal for OEM

Compact OEM infrared sensor - thermoMETER CSmicro 2W

Characteristics

  1. Measuring range (°C): -40 to 1030

  2. Optical resolution 15:1 / 22:1

  3. Spectral range 8 to 14µm

  4. Electronics integrated in the cable

  5. Scalable 4-20mA two-wire analogue output

  6. Optional USB interface

  7. Up to 180°C ambient temperature without cooling

Application

Black ice detection
