High-performance laser scanners for precise profile measurements in dynamic processes
High-performance laser scanners with high profile frequency and resolution

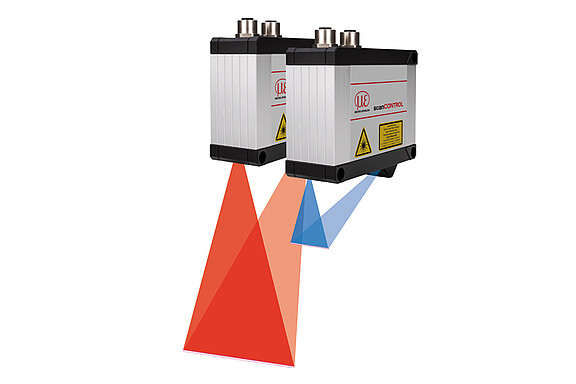

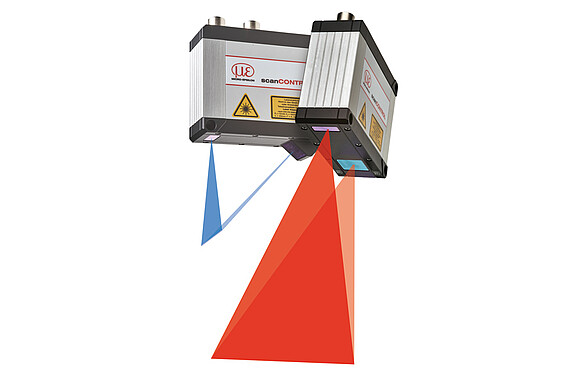

The scanCONTROL 30x2 and 30x0 series laser scanners are among the most powerful profile sensors in terms of size, accuracy and measuring rate. With a profile frequency of up to 10 kHz, both series are designed for precise 2D and 3D measurements in dynamic processes and deliver calibrated profile data at up to approx. 10 million points per second.
Thanks to the innovative High Dynamic Range mode, the scanners achieve precise measurement results even on challenging surfaces and are available with both red and blue lasers.
Characteristics
- Compact scanners with integrated controller - easy integration
- Measuring range x-axis up to 600 mm | z-axis up to 600 mm
- Resolution x-axis: 1,024 points or 2,048 points/profile
- Profile frequency up to 10 kHz - ideal for highly dynamic processes
- Three operating modes: High-Resolution, High Dynamic Range, High Speed
- Red laser / patented Blue Laser Technology
Available as PROFILE and SMART versions
The laser scanners are available in PROFILE and SMART versions. The PROFILE scanners provide calibrated profile data that can be further processed using the customer's own software. SMART scanners, on the other hand, work independently in standalone mode and evaluate the profiles directly in the sensor. The desired measurement programs are parameterized with the scanCONTROL Configuration Tools software and executed via the internal controller.
Thanks to predefined operating modes, the sensors can be optimally adapted to the respective measurement task: "High-Resolution" for maximum precision, "High Dynamic Range" for optimum profile detection on inhomogeneous or difficult surfaces and "High Speed" for the fastest possible measurements without any time offset during exposure.
Large measurement areas of 430 and 600 mm
The scanCONTROL 30xx laser scanners are now also available with a large measurement area, covering measuring fields of 430 x 390 mm and 600 x 600 mm. This allows large measuring objects to be detected with high accuracy.
HDR Mode
Thanks to the High Dynamic Range mode, the sensor generates accurate measurement results even on inhomogeneous surfaces. The exposures take place simultaneously without any time offset, enabling reliable capture of fast-moving objects.
Fast measurement results with operating modes
Choose from three predefined operating modes for your specific measurement task: "High-Resolution" for maximum precision, "High Dynamic Range" for optimal profile detection on difficult surfaces and "High Speed" for ultra-fast measurements.

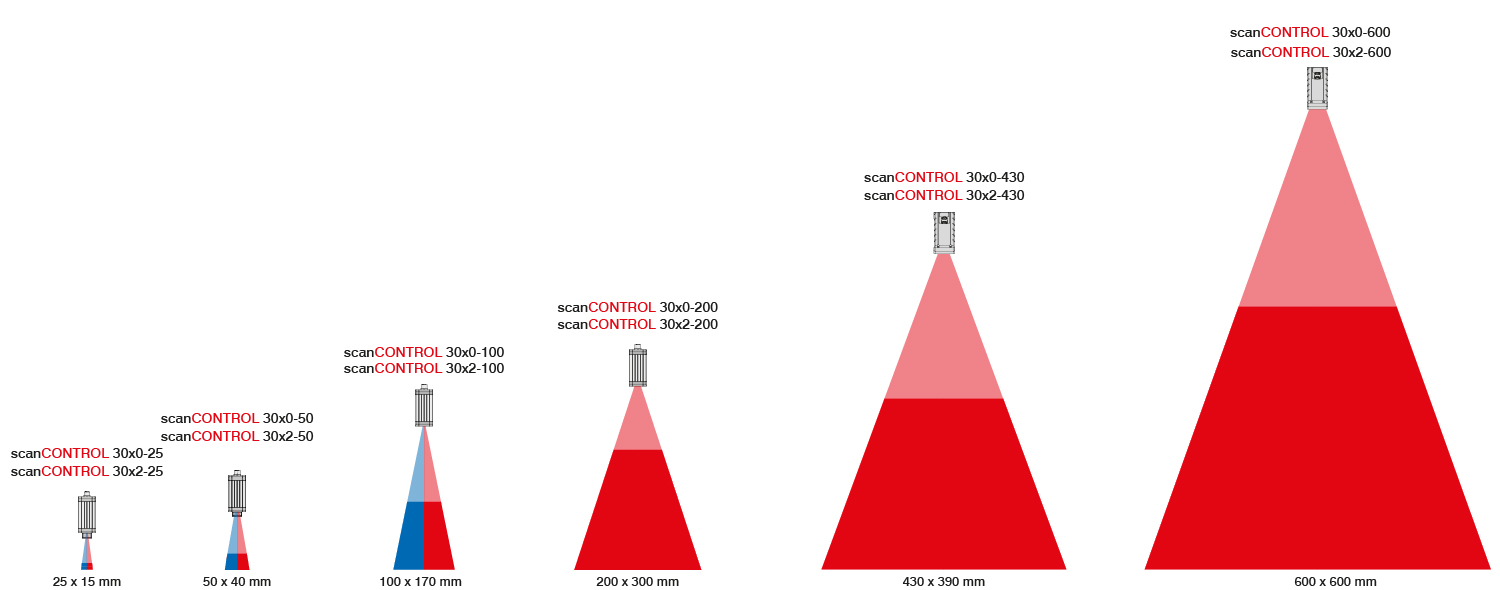

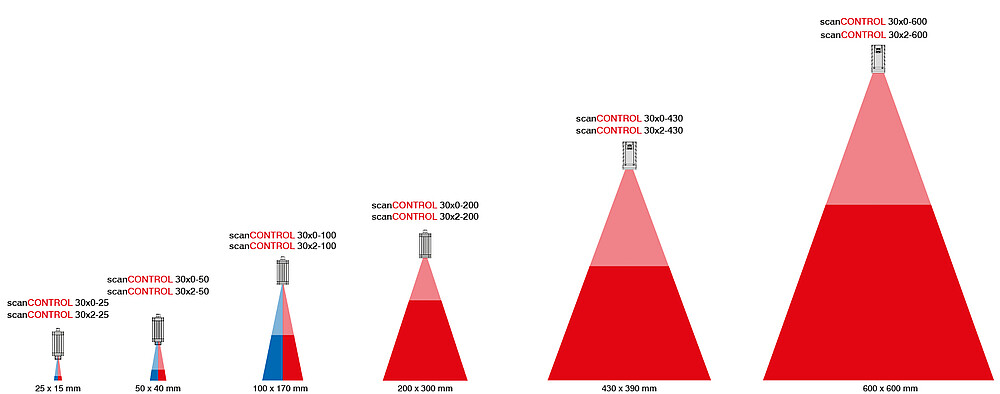

Available measurement areas
Numerous interfaces for simple integration
