Sensor systems for 3D geometry inspection
3D measuring systems from Micro-Epsilon measure strips, sheets, profiles and semi-finished products without contact in full 3D – inline during the ongoing production process. Instead of individual measuring points, they provide complete 3D data sets and thus enable the reliable evaluation of shape, geometry and dimensional accuracy. The turnkey sensor systems combine high-resolution sensor technology, powerful evaluation software and a robust system architecture. This allows geometry deviations to be detected at an early stage, quality to be documented and processes to be controlled reliably.

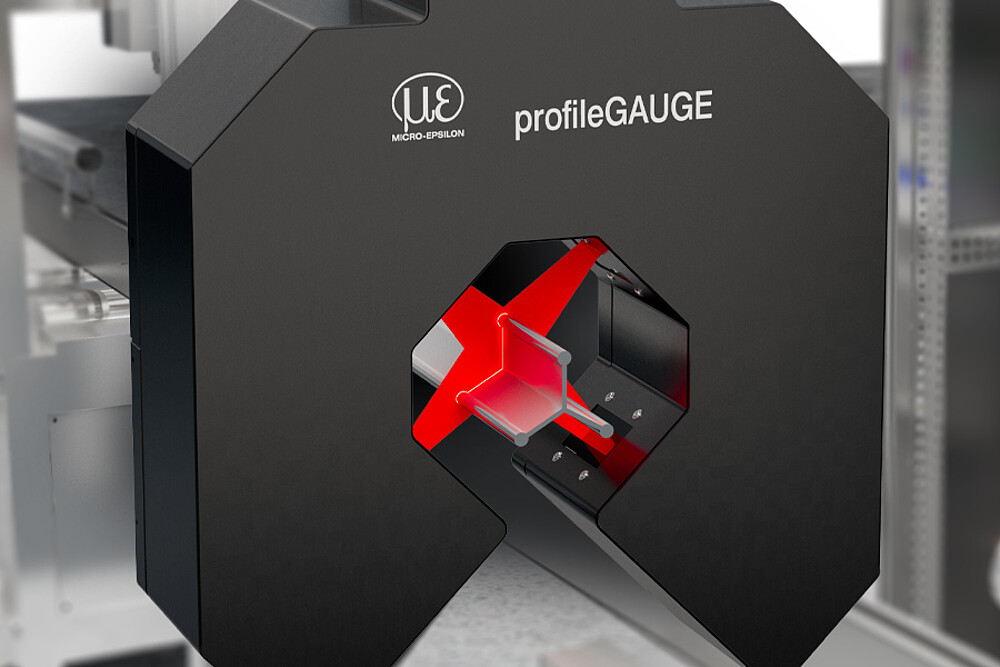

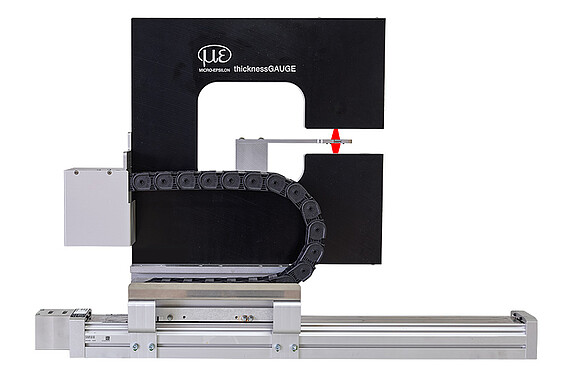

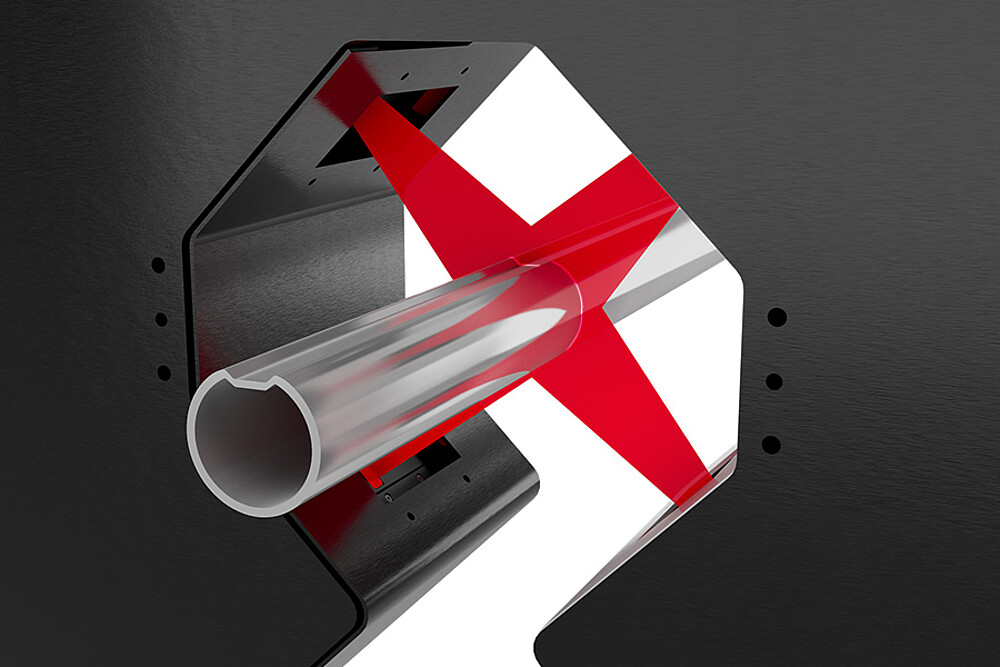

Depending on the measurement task, different systems are available from combined thickness and 3D profile measurement to 360° geometry inspection of tubes and profiles.
Characteristics
- Non-contact 3D acquisition directly in the production process
- Complete geometry and profile evaluation instead of single-point measurement
- High precision down to the micrometre range
- Turnkey systems with sensors, evaluation unit and software
- Automated evaluation of defined inspection characteristics and tolerances
- Connection to the machine control system via standard industrial interfaces
- Application-specific design tailored to the material and measurement task
100% quality control on the production line
The 3D sensor systems are used in strip processes and in long product manufacturing and continuously measure the object geometry. Thanks to their high precision, the sensor systems are used in numerous industries.
