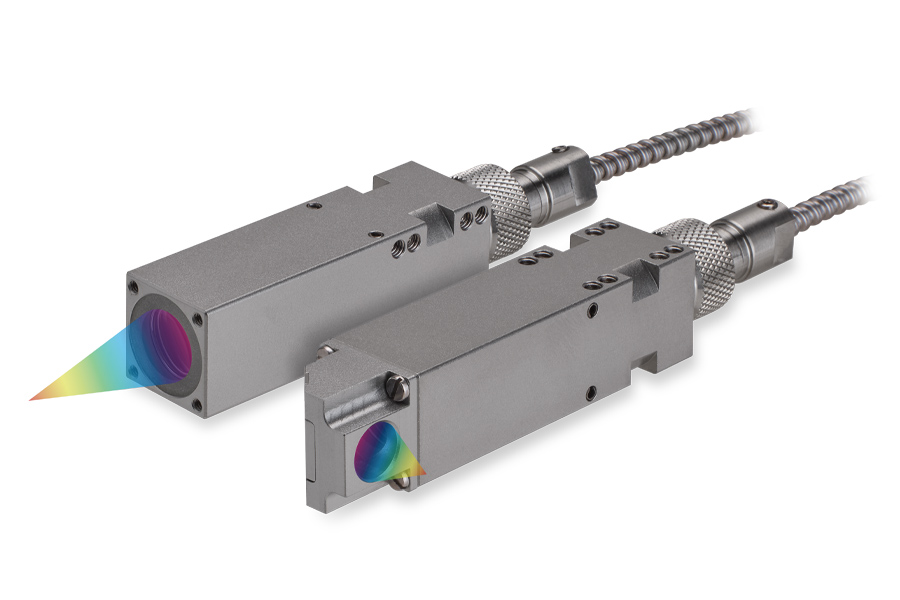

Confocal sensors for high precision distance, roughness & thickness measurements
confocalDT IFS2407 sensors are designed for high precision measurement of distance, roughness and thickness. These confocal chromatic sensors offer a high numerical aperture, a small light spot diameter and tolerate large measurement angles, which means that the sensors can also be used for roughness measurements. In addition, the sensors impress with nanometre accuracy.
confocalDT IFS2407-0,1
- Measuring range (mm): 0.1
- Linearity: max. 0.05 µm
- Resolution: max. 3 nm
- Ideal for distance and roughness measurements
- Light-intensive sensor variant for high speed processes available (NA 0.7)
- Small measurement spot size: 3 µm
- High sensitivity and large measure angle
- Thickness measurement of transparent objects from 5 µm
confocalDT IFS2407-0,8
- Measuring range (mm): 0.8
- Linearity: max. 0.2 µm
- Resolution: max. 24 nm
- Small light spot
- Space-saving sensor design
- Precise distance measurements even on curved surfaces
- Ideal for thickness measurements of thin layers
confocalDT IFS2407-1,5
- Measuring range (mm): 1.5
- Extremely small measurement spot of 5.5 µm
- Measuring angle >± 43°
- Light-intensive model (NA > 0.7)
- High precision measurement on curved and mirroring surfaces
- Stable measurement on structured surfaces
confocalDT IFS2407-3
- Measuring range (mm): 3
- Linearity: max. 0.5 µm
- Resolution: max. 13 nm
- Large offset distance approx. 28 mm
- Max. measure angle ± 30°
- Ideal for measurements on curved and reflecting surfaces
confocalDT IFS2407-6
- Measuring range (mm): 6
- Linearity: max. 1 µm
- Resolution: max. 15 nm
- Large offset distance approx. 32 mm
- Ideal for fast, high-precision measurements on challenging surfaces
- High light intensity even on dark/poorly reflecting surfaces

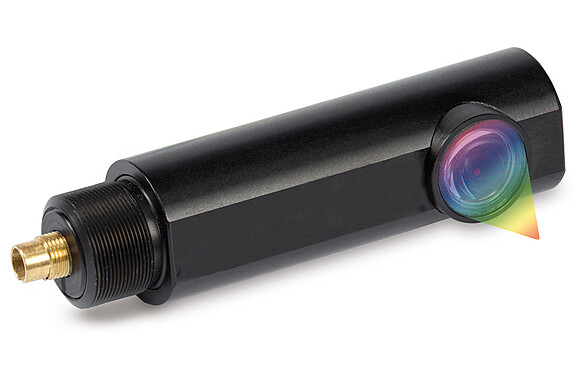

confocalDT IFS2407/90-0.3
- Measuring range (mm): 0.3
- Linearity: max. 0.15 µm
- Resolution: max. 6 nm
- Ideal for displacement and roughness measurements
- Small measurement spot 6 µm
- High sensitivity and large measuring angle
- 90° beam path, ideal for mounting in confined installation spaces
