Confocal miniature sensors for displacement, distance & position

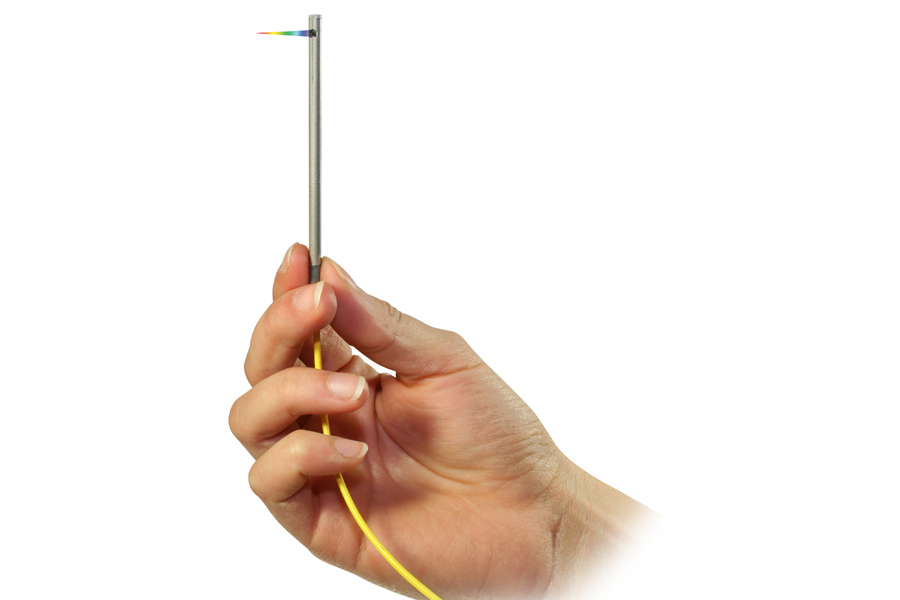

confocalDT IFS2402 displacement sensors are designed for high precision applications in restricted installation spaces. The confocal chromatic IFS2402 miniature sensors with an outer diameter of just 4 mm and a stainless steel houisng are used in narrow cavities and drill holes. The sensor model with radial beam path for the detection of walls and structures is of particular advantage here.

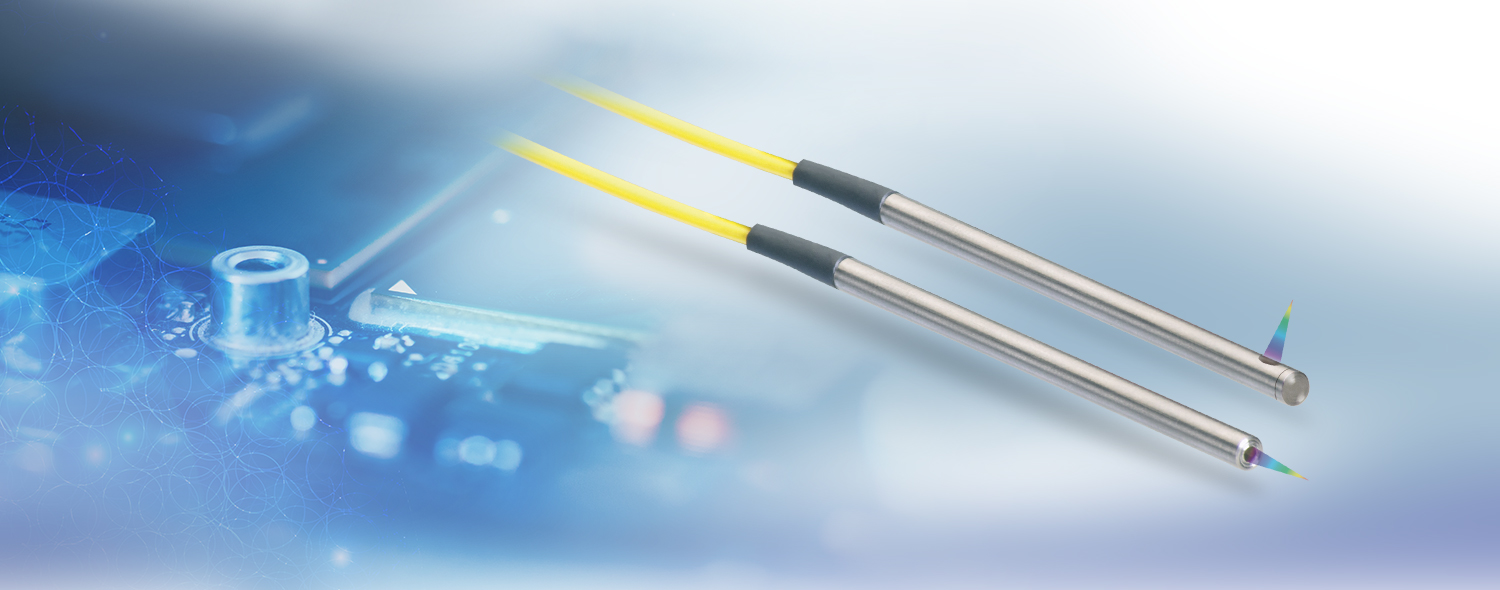

confocalDT IFS2402
- Unique miniature sensors, ideal for measurements in bore holes and cavities
- Measuring ranges (mm): 0.5 | 1.5 | 2.5 | 3.5
- Linearity: max. 0.2 µm
- Resolutio:n max. 16 nm
- Axial or radial version
- Steel or titanium housing
- 90° model with chamfer for exact alignment
