thermoMETER CT

Precise infrared sensors for universal applications

Infrared pyrometers for universal measurements

Infrared pyrometers of the thermoMETER CT series can be used in a wide variety of applications. From low temperatures prevalent in cooling chains or laboratories, to the highest temperatures in hot molten metals and blast furnaces - these IR pyrometers measure precisely and reliably.

Contact
logo

Characteristics

  1. Temperature ranges from -50 °C to +1600°C
  2. Sensors for the metal industry
  3. Sensors for the glass industry
  4. High speed version
  5. Also suitable for use in potentially explosive atmospheres
  6. Extensive accessories
[]
Contact
MICRO-EPSILON UK & Ireland Ltd.
+44 151 355 6070
Contact form
Your request for: {product}
Please enter the result of the calculation below. This will avoid spam.
captcha
* Mandatory fields
We treat your data confidentially. Please read our data privacy statement.

Infrared software Compact Connect included

The temperature analysis software Compact Connect has been developed specifically for the thermoMETER series of temperature measurement sensors. It allows extensive documentation and analysis of temperature measurement data, as well as configuration and saving of the sensor parameters. It is licence-free and included in every sensor shipment.

Temperaturanalysesoftware Compact Connect

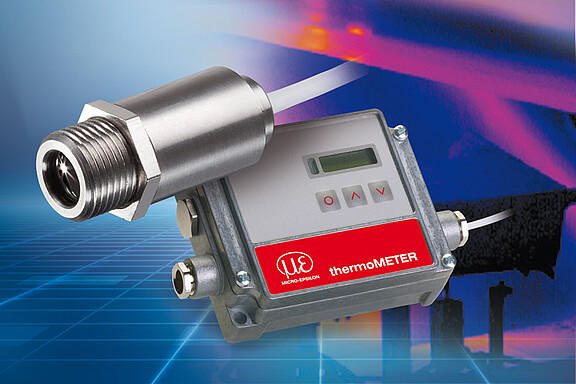

Infrared pyrometer - thermoMETER CT

Characteristics

  1. Measuring range (°C): -50 to 600 | -50 to 975

  2. Optical resolution 2:1 | 15:1 | 22:1

  3. Spectral range 8 to 14µm

  4. One of the smallest IR sensors in the world

  5. Robust and without cooling up to 180 °C

  6. Very small infrared sensor head

  7. Various output signals available

  8. Rugged sensor head

  9. Exchangeable sensors

  10. Best price

Infrared pyrometer - thermoMETER CTfast

Characteristics

  1. Measuring range(°C): -50 to 975

  2. Optical resolution 15:1/25:1

  3. Spectral range 8 to 14µm

  4. One of the smallest IR sensors in the world

  5. Extremely short response times

  6. For high-speed processes

  7. Separate controller with programming keys

  8. Fast scanning along a line

Pyrometer for hot ambient temperatures

Characteristics

  1. Measuring ranges (°C): -40 to 975

  2. Optical resolution 10:1

  3. Spectral range 8 to 14µm

  4. Ambient temperature up to 250 °C without cooling

  5. Separate controller with programming keys

  6. Inclined sensor alignment avoids influences by material thickness

  7. Typ. applications: dryers, kilns, heat treatment in the processing of metals, plastics and textiles

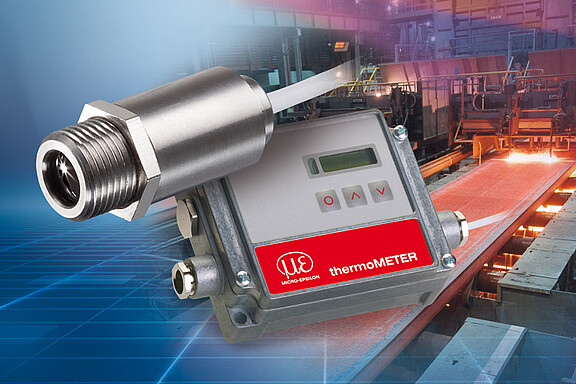

Infrared pyrometer for metal processing

Characteristics

  1. Measuring ranges (°C): 250 to 800 | 385 to 1600

  2. Optical resolution 40:1 | 75:1

  3. Spectral range 1.6µm

  4. Miniaturised IR thermometer

  5. Ambient temperatures up to 125°C without cooling

  6. Separate controller with programming keys

  7. High electromagnetic compatibility

  8. Typ. applications: welding, soldering, forming, sintering, ...

Infrared pyrometer - thermoMETER CT-M3

Characteristics

  1. Measuring ranges (°C): 50 to 400 | 100 to 600 | 150 to 1000

  2. Optical resolution 22:1 or 33:1 or 75:1

  3. Spektral range 2.3µm

  4. Miniaturised IR thermometer

  5. Up to 85°C ambient temperature without cooling

  6. Very fast response times from 1 ms

  7. Separate controller with programming keys

  8. Short measuring wavelength reduces measurement errors due to emissivity changes

  9. Especially suitable for measurements of metals and composites

Infrared pyrometer for fast temperature measurements

Characteristics

  1. High measurement speed of 90 µs response time for extremely fast processes

  2. Measuring range (°C): 0 to 500

  3. Optical resolution 10:1

  4. Suitable for metals and non-metals due to large, short-wave spectral range (2.2. to 6 µm)

  5. Ideal for industrial temperature measurements from 0 °C

  6. Separate controller with programming keys

  7. Integrated USB interface

Application

Brake temperature measurement
Brake temperature detection
