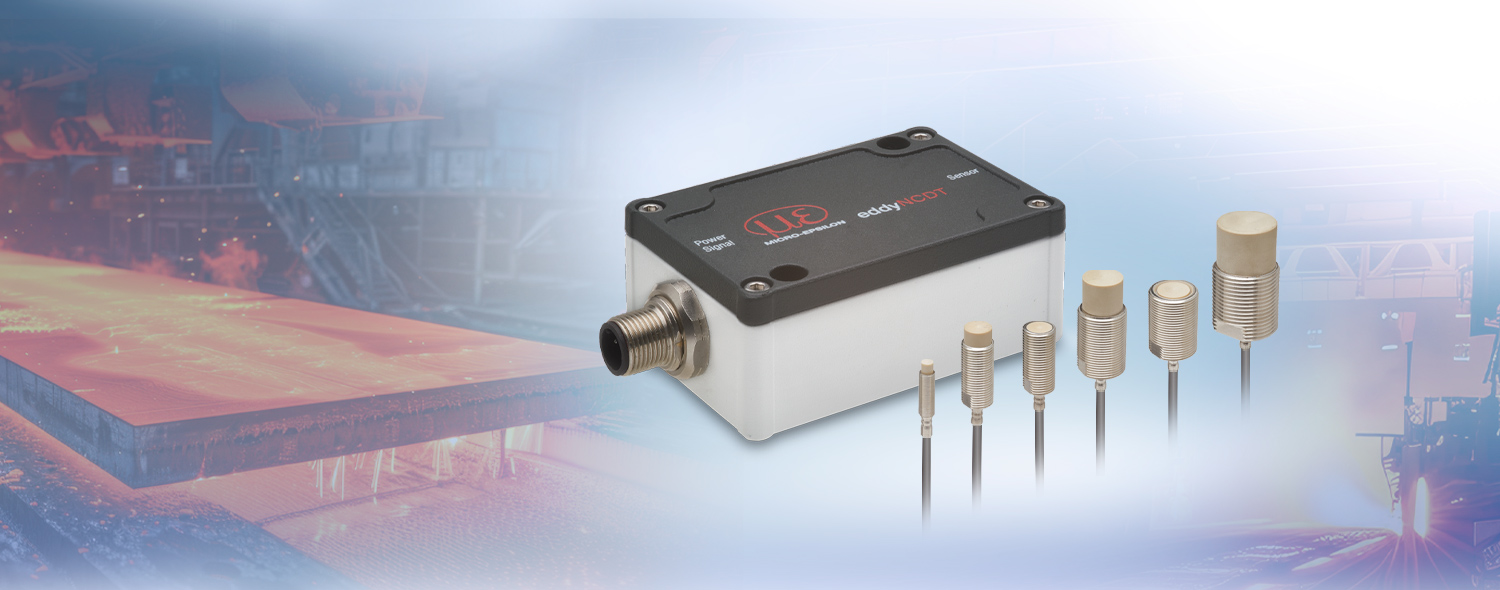

High-performance eddy current measuring system for industrial series applications
The eddyNCDT 3020 is a compact and powerful inductive measuring system (eddy current) for fast and precise displacement, distance and position measurements in industrial applications. Flexible in terms of connectivity and easy to configure, it can be used for numerous measurement tasks in industry and machine building.
The sensor system is designed for series and OEM applications and delivers precise and stable measurement results even under harsh conditions - up to max. 200 °C ambient temperature. The robust controller can be combined with a wide variety of sensors and is factory-adapted to ferromagnetic or non-ferromagnetic materials.
Robust and precise - for industrial series applications at high temperatures.
Characteristics
- Ideal for use at high temperatures: controller up to 105 °C / sensor up to 200 °C
- Precise distance measurements with high resolution up to 40 nm
- For fast measurements: Measuring rate 80 kSa/s up to a frequency response of 5 kHz
- Robust and compact design with IP67
- RS485 interface, scalable analogue output (current) and switching output
- Fieldbus connection via interface module
- Easy configuration via sensorTOOL software
- Compatible with numerous sensors offering measuring ranges from 1 ... 80 mm

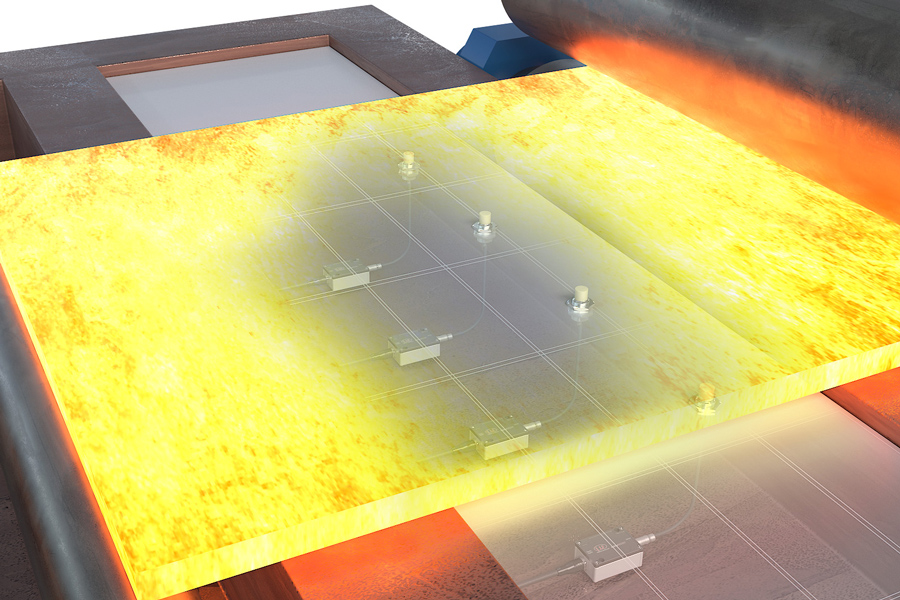

Extremely high temperature application range of the controller up to 105 °C
The robust DT3020 can also be installed very close to the sensor in hot environments, e.g. in welding applications, in steel rolling processes or in die casting systems. This reduces the cable length between the sensor and controller while minimizing temperature influences on the cable and increasing precision. The measurement signal remains stable and can be transmitted digitally or via a current output over longer distances.
Best temperature compensation worldwide

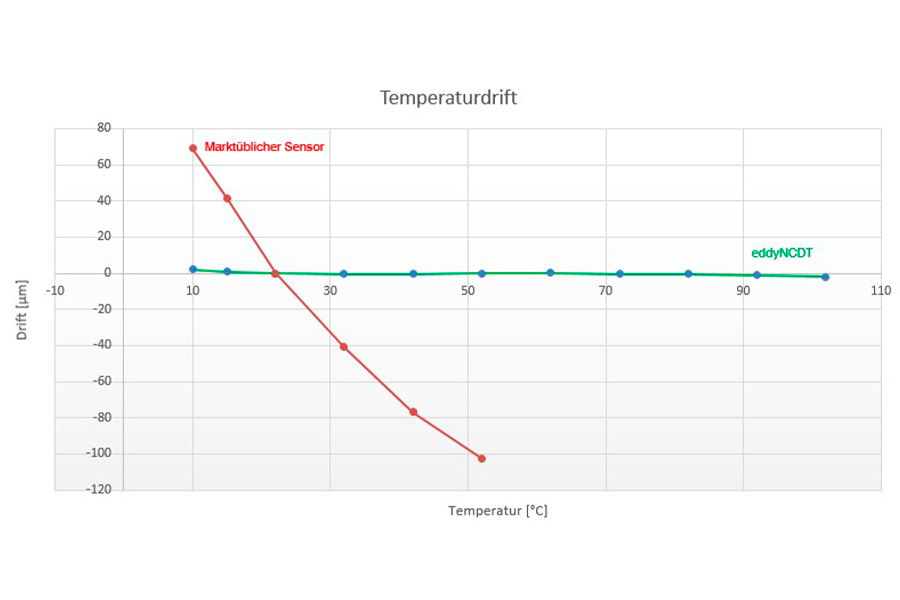

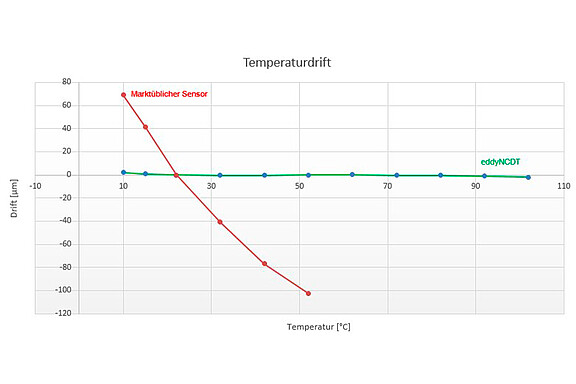

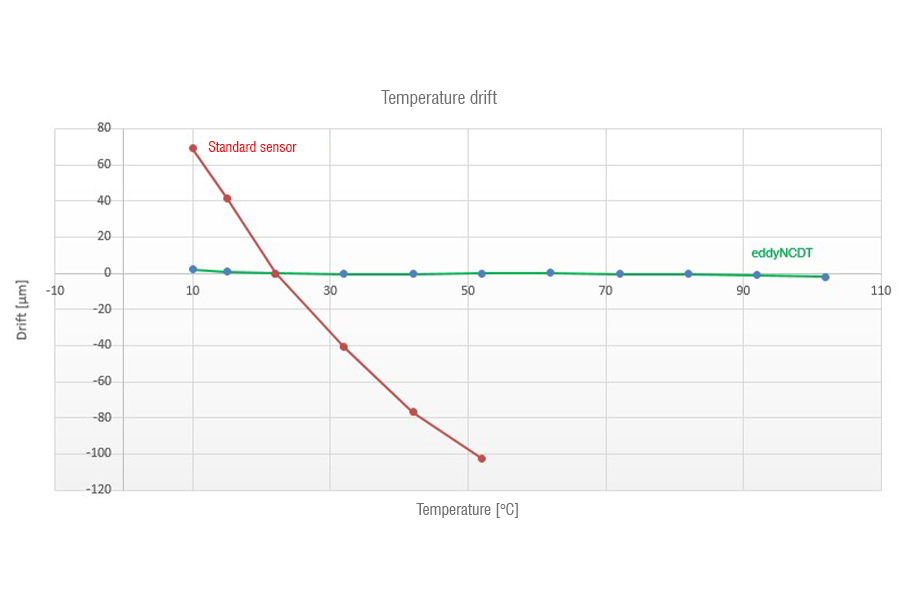

The eddyNCDT 3020 compensates for temperature fluctuations in the vicinity of the controller between +10 and +105 °C which minimizes the influence on the measurement result. Temperatures on and around the sensor are even compensated up to +180 °C. This provides extremely high precision down to the nanometre range with excellent signal stability.
Configurable & easy to integrate

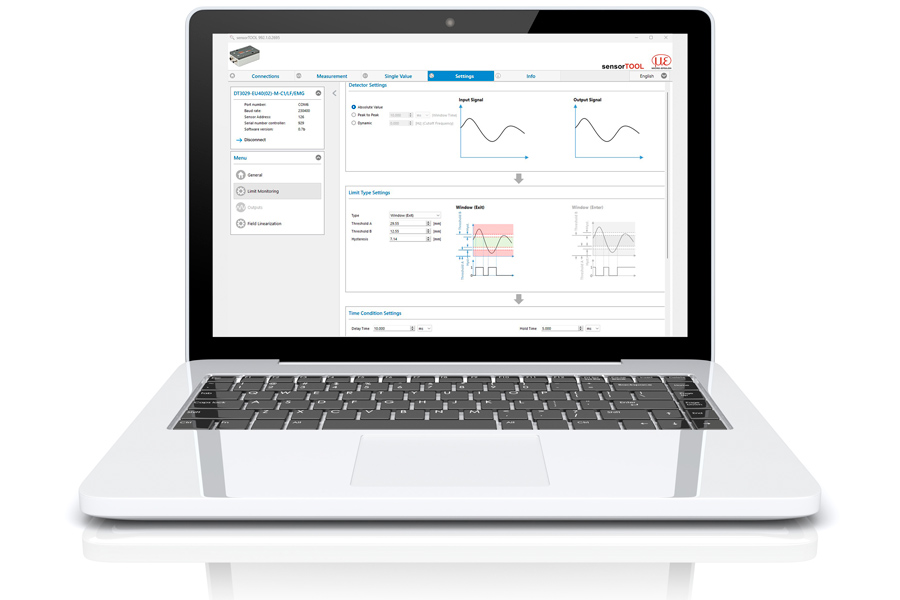

The eddyNCDT 3020 can be integrated via both digital and analogue interfaces as well as via common fieldbuses. The free sensorTOOL is available for convenient configuration. Among other things, this software can be used to scale the analogue output, store individual limit values for Condition Monitoring, activate averaging functions for signal smoothing or perform 3-point linearization to optimize measurement accuracy.
Eddy current sensors - the solution for demanding environments
Eddy current sensors have a special ability: they are extremely robust and measure very accurately even under the harshest conditions. Eddy current sensors are particularly advantageous in applications with high pressure, dirt, oil, high temperatures or magnetic fields.
