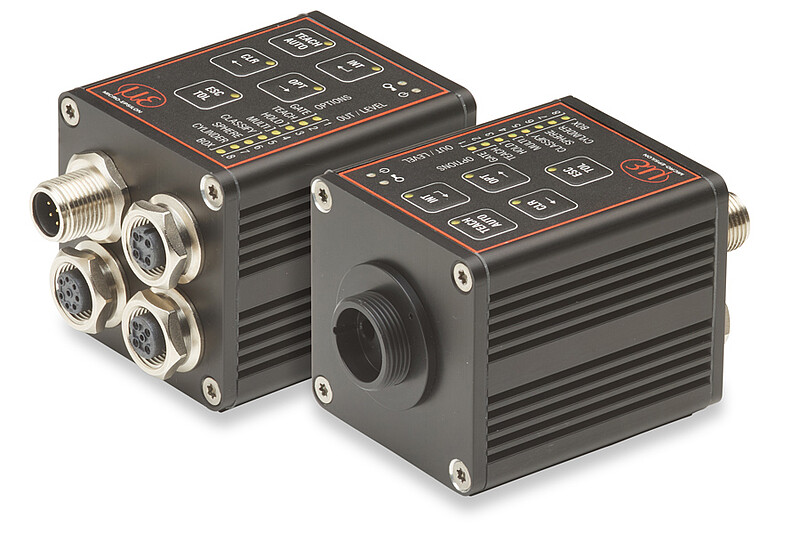

colorSENSOR CFO100/200/250
The colorSENSOR CFO is a new controller for precise colour detection in industrial measurement tasks. The CFO series is characterized by high colour accuracy, modern interfaces and intuitive operation. CFS sensors with integrated fibre optics are connected to the controller, which can be adapted for different measurement tasks. The colorSENSOR CFO is used for colour detection on interior parts such as headrests, packaging inspection or sorting by colour of crown caps, closures or labels. The colorSENSOR replaces the models of the LT series.
The CFO200 is designed for high performance colour measurements. With a measuring rate of 30 kHz, even dynamic high speed production processes can be monitored reliably. High repeatability enables the reliable detection of even the slightest colour differences. The colour memory offers teach-in of up to 320 colors in 254 colour groups.
The colorSENSOR CFO250 is a high-performance controller for precise colour recognition in industrial measurement tasks. The internal evaluation of taught-in colour values as well as the output via the digital switching outputs takes place at a speed of up to 30 kHz.
Using a simplified 3-byte protocol, the unweighted raw data can also be transmitted directly to a PLC or machine system in Lab or XYZ at up to 500 Hz via a UDP, RS232 or USB interface.
Characteristics
-
Measurement value output (Lab/XYZ) up to 500 Hz
-
Edge or level trigger for controlling the measurement value output
-
Measurement speed: max. 30 kHz
-
Colour memory: 320 colors in 254 colour groups
-
Colour distance: ΔE ≤ 0.6
-
Repeatability: ΔE ≤ 0.3
-
8 switching outputs
-
Intuitive setting via web interface
-
Integration in Profinet, EthernetIP or EtherCAT via Modbus + Gateway
